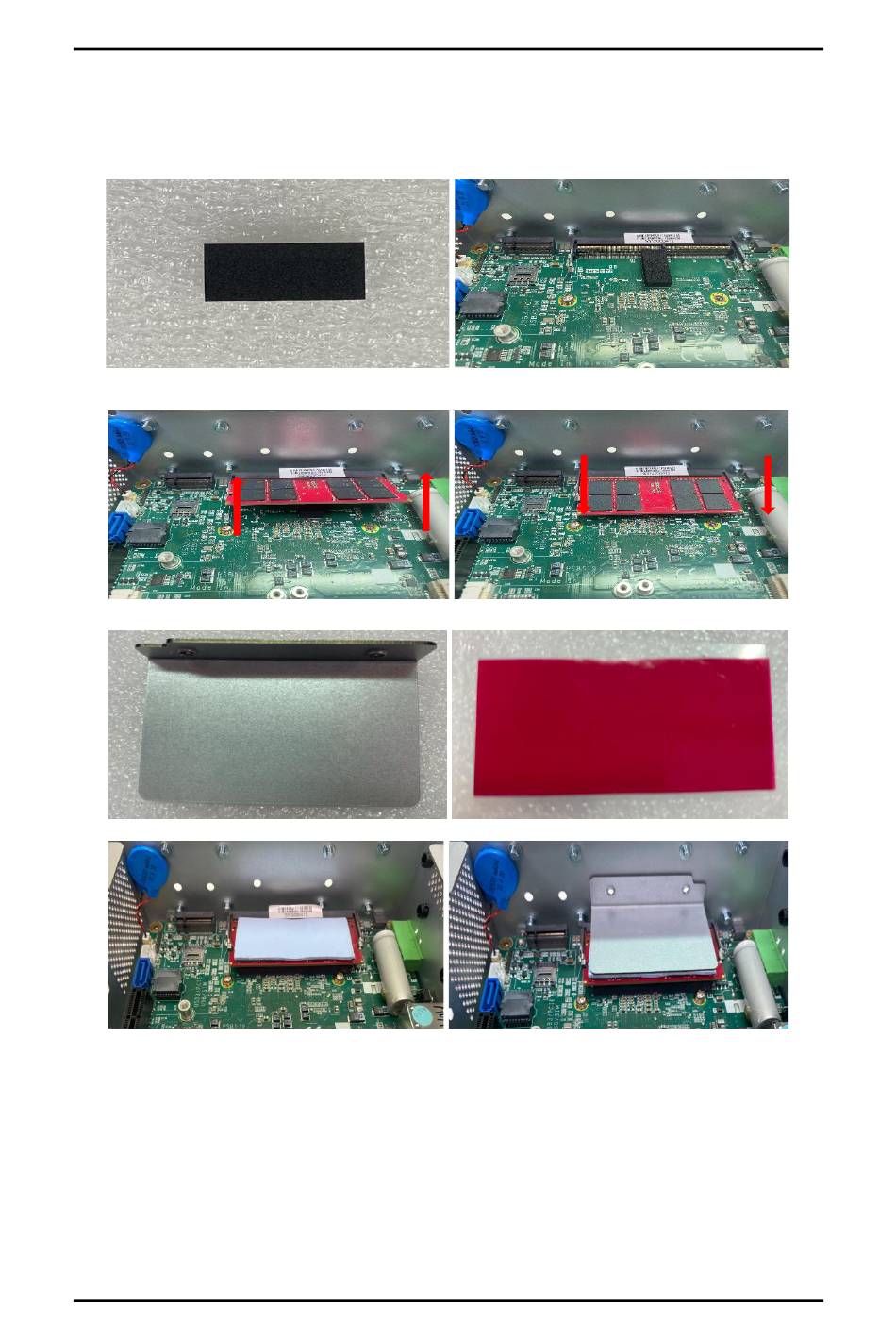

Step 3
Put the thermal pad on the SO-DIMM socket. Then insert the module's gold
finger into the socket and push the module down to finish the memory
installation.
a. Paste Sponge
b. Install Memory
c. Install thermal pads and sheets
Hardware Installation
ICO520 Series User's Manual
23
