ICO520 Series User's Manual

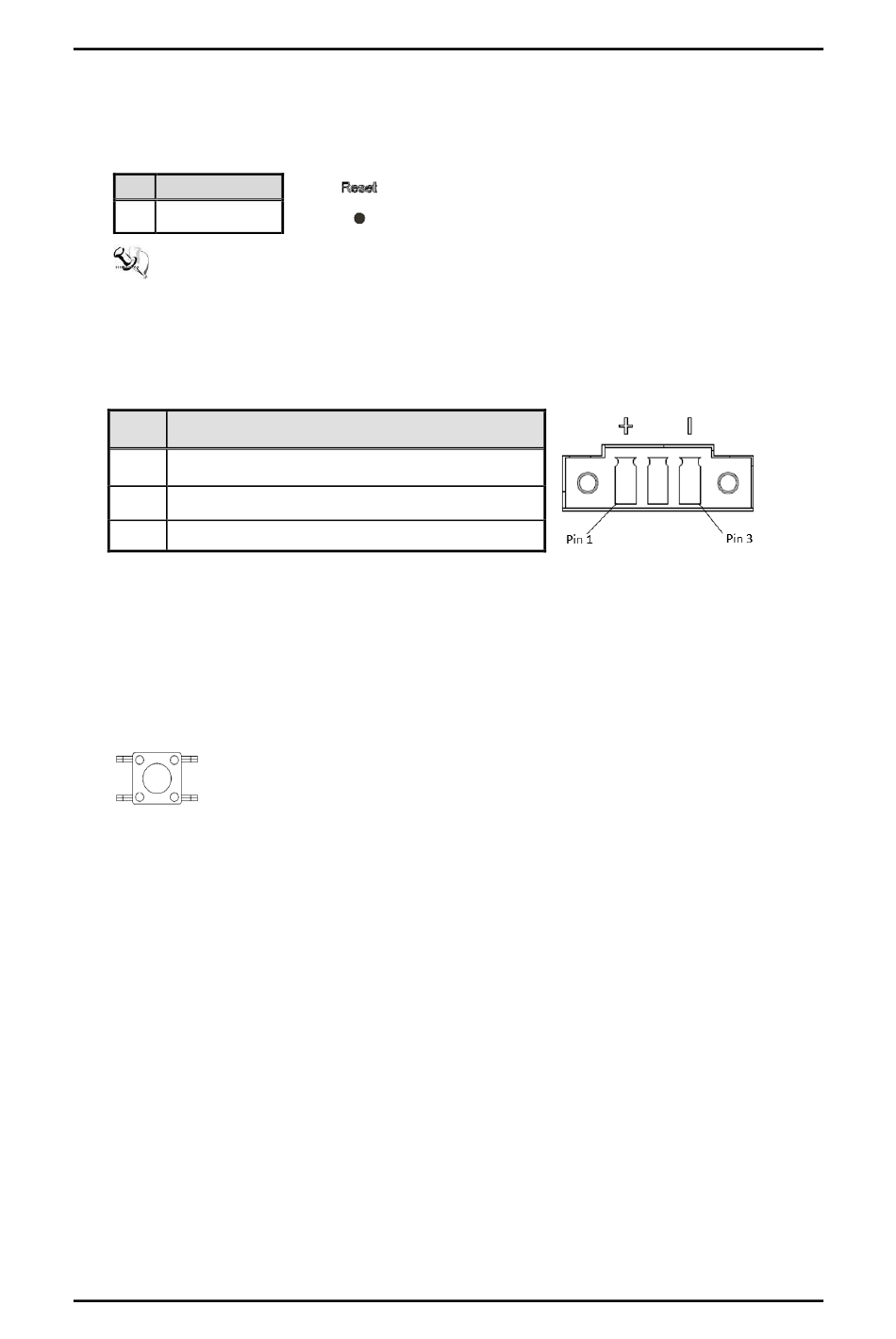

1.2.11 Power& Reset Button
⚫ AT auto power on
⚫ Reset Button.
Pin Description
1 Reset Button
Note: Refer to APPENDIX B for instructions on Power button settings for Windows.
1.2.12

Power

⚫ Wide-range 12 - 48V DC power input with terminal block.
OVP, UVP, OCP, RPP
Pin
1
2
3
1.2.13

WatchDog Timer (WDT)

⚫ 1~255 seconds or minutes; up to 255 levels.
1.2.14

Restore BIOS Optimal Defaults (CLEAR CMOS)

⚫ Push the CMOS Button on the mother board for a few seconds. Doing this procedure can
restore BIOS optimal defaults.
1.2.15

Operation Temperature

⚫ System with i7-1265UE or i5-1245UE supports -40°C to +50°C (-40°F to +122°F)-40°C to
⚫ System with i3-1215UE or 7305E supports -40°C to +60°C (-40°F to +140°F)
1.2.16

Storage Temperature

⚫ -40.0°C ~ +85.0°C
1.2.17

Humidity

⚫
10% ~ 95% (non-condensation)
1.2.18

Weight

⚫ Fully Type: 1.75 kg (3.86 lb)
⚫
Simplified Type: 1.65 kg (3.84 lb)
10
.
Signal
VIN +
N/A
VIN -
Introduction
