ICO520 Series User's Manual
1.2.5
Ethernet Ports
⚫
LAN Chip: Intel Ethernet Controller I226IT.
⚫
The board has dual RJ-45 connectors, supporting 10/100/1000/2500 Base-T with 1.5KV
magnetic isolated protection.

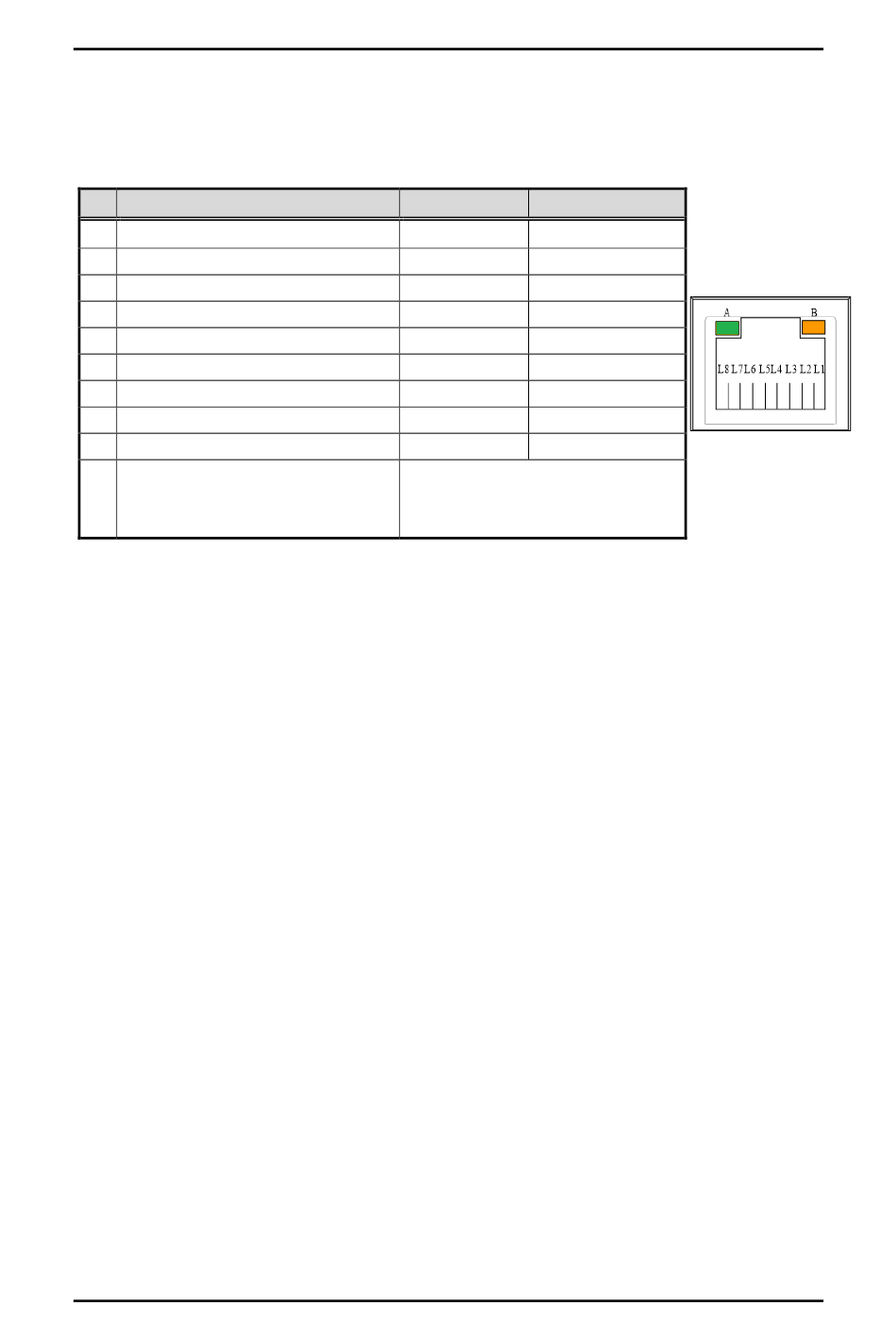

Pin Description
1
Transmit Data+ or Bidirectional
2
Transmit Data- or Bidirectional
3
Receive Data+ or Bidirectional
4
Not Connected or Bidirectional
5
Not Connected or Bidirectional
6
Receive Data- or Bidirectional
7
Not Connected or Bidirectional
8
Not Connected or Bidirectional
A
Speed LED
B
Activity Link LED
1.2.6
Storages
1 x Internal 2.5" SATA Drive(CN6)
⚫
⚫
1 x mSATA Drive(share with one mini PCIe slot) (CN11)
⚫
1x NVMe M.2 2240/2280 PCIe Gen2x4 (optional on fully type) (SCN1)
4
10/100Base-T 1000/2500Base-T
TX+
BI_DA+
TX-
BI_DA-
RX+
BI_DB+
N.C.
BI_DC+
N.C.
BI_DC-
RX-
BI_DB-
N.C.
BI_DD+
N.C.
BI_DD-
OFF
Green / Orange
OFF: No Link
Blinking: Data activity detected
(Yellow)
