5
Additional Features
5.1
Buttons

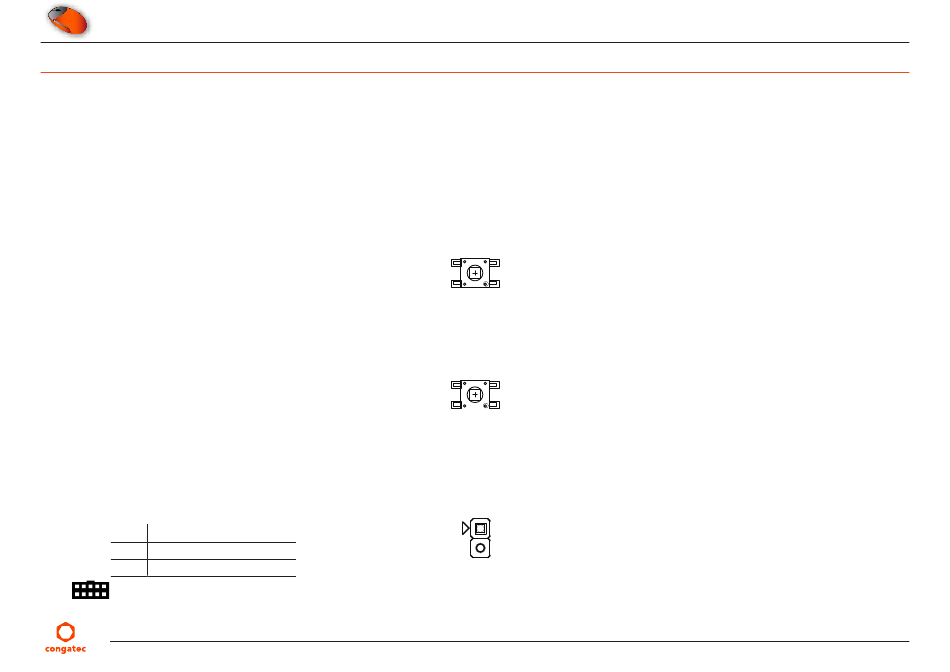

The conga-HPC/3.5-Mini features onboard power and reset buttons. LID and sleep buttons can be connected via header X40 and X41.
5.1.1
Power
When you press the power button M5, it triggers the module's PWRBTN# signal. The triggered event usually initiates a transition from one
power state to another (for example, from S5 to S0). However, the system's behavior depends on the ACPI settings of the Operating System.
5.1.2
Reset
When you press the reset button M6, it triggers the module's RSTBTN# signal. The triggered event usually invokes a system warm reset. This
behavior however depends on the configuration of the module.
5.1.3
LID
When you press the lid button X40, it triggers the module's LID# signal. The system's behavior depends on the ACPI settings of the Operating
System.
Table 33
X40 - LID Pinout
Pin
Signal
1
LID_BTN#
2
GND
Connector Type
X40: 2.54 mm pitch, 2x1 pin jumper
Copyright © 2024 congatec GmbH
M5
M6
X40
1
2
FMC1m001
39/41
