4.21

GPIO Pin Header

The conga-HPC/3.5-Mini provides 12 GPIO pins on header X52.

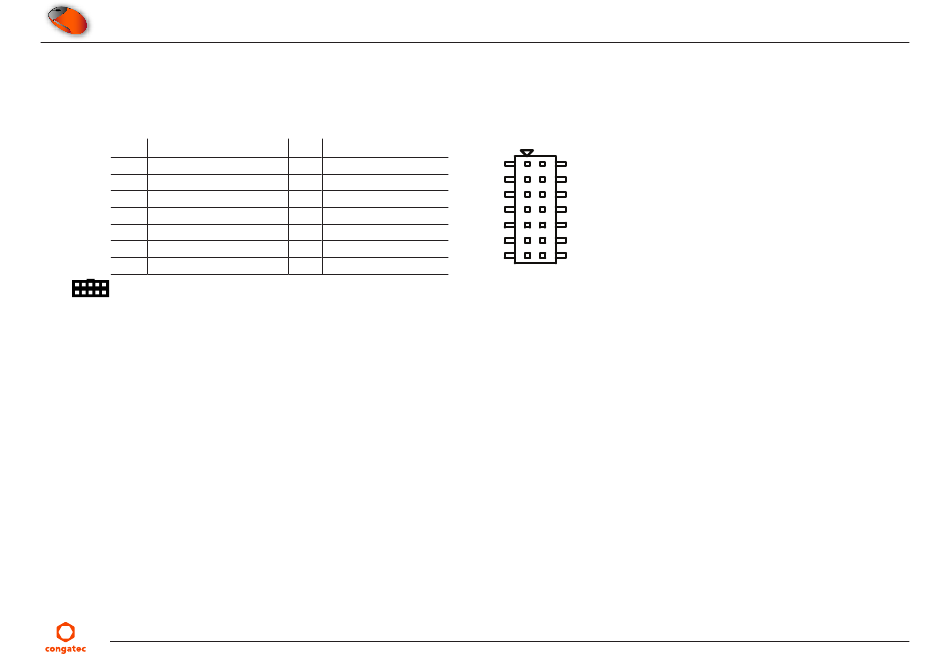

Table 28 X52 - GPIO Header Pinout
Pin Signal
1 +V1.8_S5
3 GPIO_03
5 GPIO_07
7 GPIO_11
9 GPIO_10
11 GPIO_06
13 GPIO_02
Connector Type
X52: 1.27 mm, 2x7-pin female connector
Copyright © 2024 congatec GmbH
Pin Signal
Pin 1
2 GPIO_01
4 GPIO_05
6 GPIO_09
8 GND
10 GPIO_08
12 GPIO_04
Pin 13
14 GPIO_00
X52
Pin 2
Pin 14
