Uart0 Port; Uart1 Port; Table 22 X14 - Uart0 Pinout; Table 23 X15 - Uart1 Pinout - Congatec conga-HPC/3.5-Mini User Manual

4.16

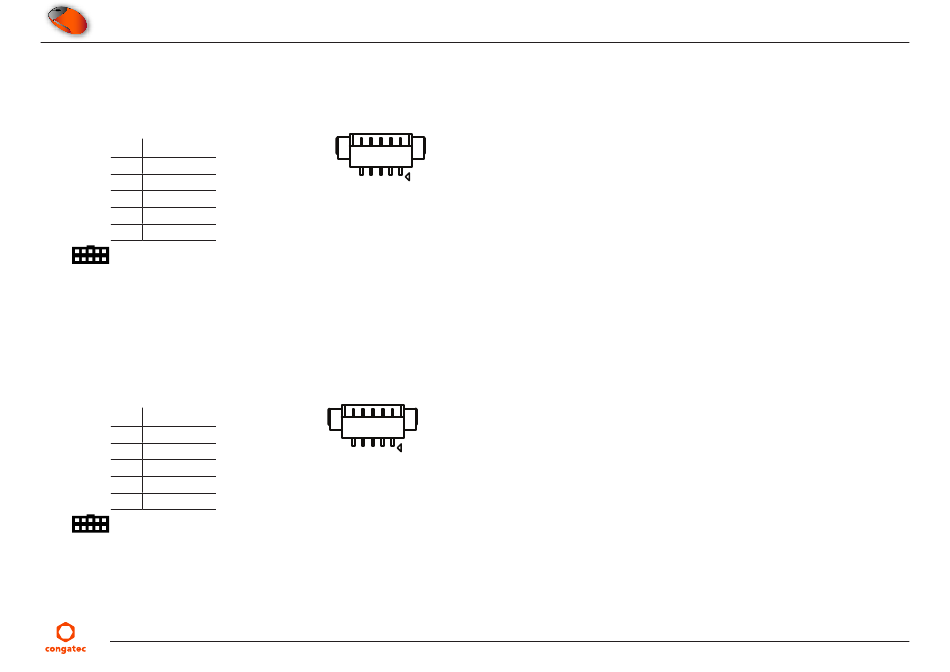

UART0 Port

The conga-HPC/3.5-Mini provides the module's UART0 port on header X14. The port supports RS-232 I/O voltage levels.
Table 22 X14 - UART0 Pinout
Pin Signals
1 GND
2 UART0_TX
3 UART0_RTS
4 UART0_CTS
5 UART0_RX
Connector Type
X14: 1.25 mm pitch, 5x1-pin (Molex 53261-0571); Possible Mating Connector: Molex 51021-0500
4.17

UART1 Port

The conga-HPC/3.5-Mini provides the module's UART1 port on header X15. The port supports RS-232 I/O voltage levels.
Table 23 X15 - UART1 Pinout
Pin Signals
1 GND
2 UART1_TX
3 UART1_RTS
4 UART1_CTS
5 UART1_RX
Connector Type
X15: 1.25 mm pitch, 5x1-pin (Molex 53261-0571); Possible Mating Connector: Molex 51021-0500
Copyright © 2024 congatec GmbH
X14
Pin 1
X15
Pin 1
FMC1m001 33/41
