4.9

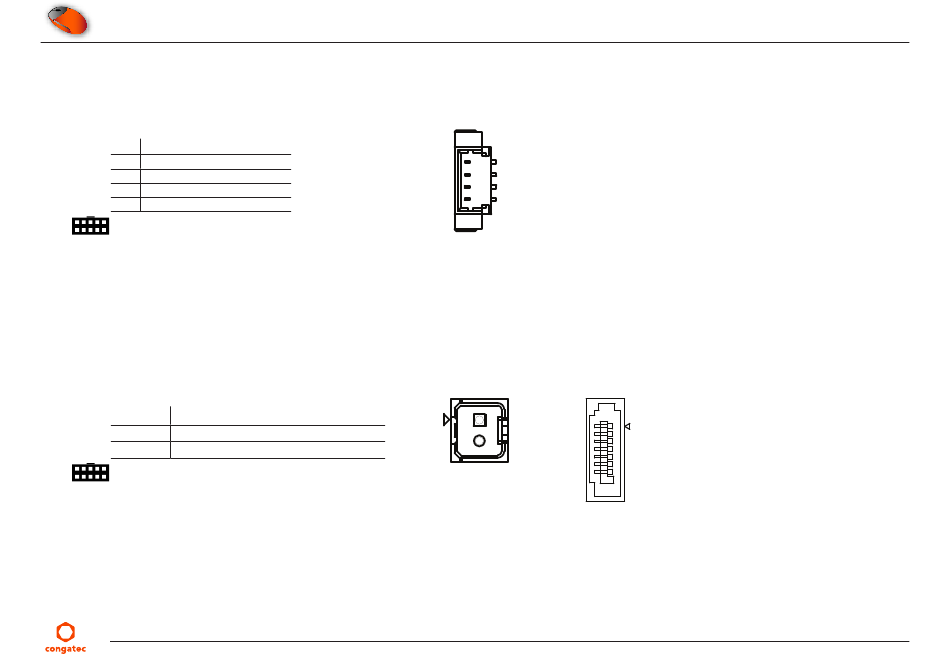

USB 2.0 Type-A Port

The conga-HPC/3.5-Mini provides header X47 for one USB 2.0 port. This port is routed to the COM-HPC
Table 13 X47 - USB 2.0 Header Pinout
Pin Signal
1 +5 V
2 USB7-
3 USB7+
4 GND
Connector Type
X47: 1.25 mm pitch, 4x1-pin (Molex 53261-0471); Possible Mating Connector: Molex 51021-0400
4.10

SATA

The conga-HPC/3.5-Mini provides the module's SATA0 port on connector (X31) with support for up to 6 Gbps.
SATA power is provided by connector X34.
Table 14 X34 - SATA Power Pinout
Pin Signal
1 +V5.0 (1.5 A fuse; resettable)
2 GND
Connector Type
X31: SATA DOM device
X34: 2.50 mm pitch, 2-pin female connector (Molex Mini-Lock)
Copyright © 2024 congatec GmbH
X47
Pin 1
X31
X34
1
2
FMC1m001
USB7 signals.
®
27/41
