Usb 3.2 Type-A Ports (Usb3 #0,1,2,3); Table 11 X48 - Programming Header For Pd Controller; Table 12 X36, X37 - Usb 3.2 Gen 2X1 Type-A Port Signals - Congatec conga-HPC/3.5-Mini User Manual

The PD controller (address 0x50) can be programmed via header X48:

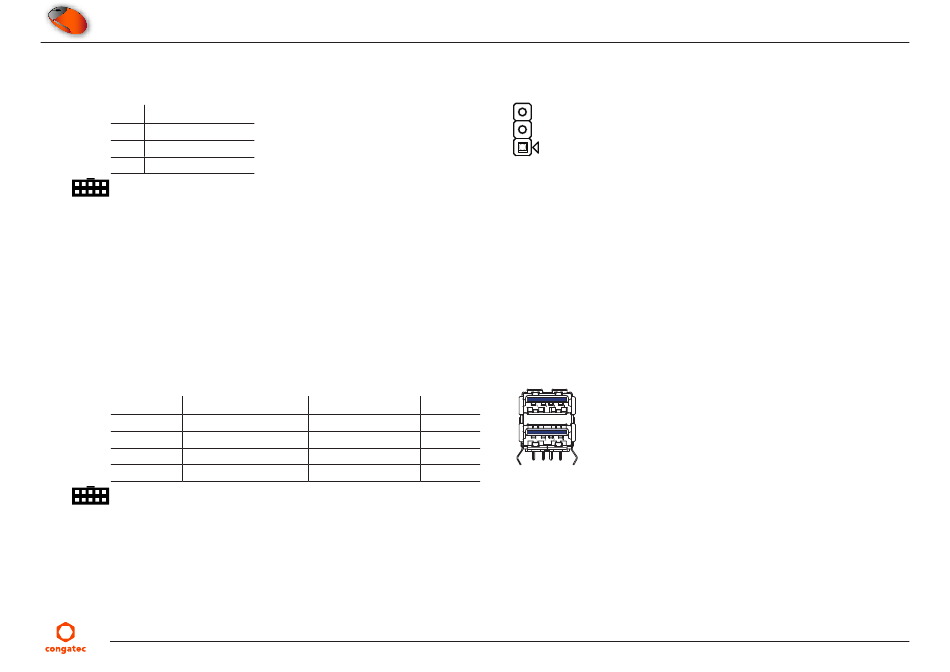

Table 11 X48 - Programming Header for PD Controller
Pin Description
1 SDA
2 GND
3 SCL
Connector Type
X4: USB Type-C plug
X48: 3-pin, 2.54 mm grid female header
4.8

USB 3.2 Type-A Ports (USB3 #0,1,2,3)

The conga-HPC/3.5-Mini provides four USB 3.2 Type-A ports via two dual-stacked connectors (X36, X37).
The ports are routed to the COM-HPC
Table 12 X36, X37 - USB 3.2 Gen 2x1 Type-A Port Signals
Connector COM-HPC USB Port SuperSpeed Lane USB 2.0
X36 Bottom USB3 #0
X36 Top USB3 #1
X37 Bottom USB3 #2
X37 Top USB3 #3
Connector Type
X36, X37: USB Type-A plug
Copyright © 2024 congatec GmbH
signals listed in the table below:
®
SS7 USB5
SS6 USB3
SS5 USB4
SS4 USB1
X48
3
2
1
X36, X37
FMC1m001 26/41
