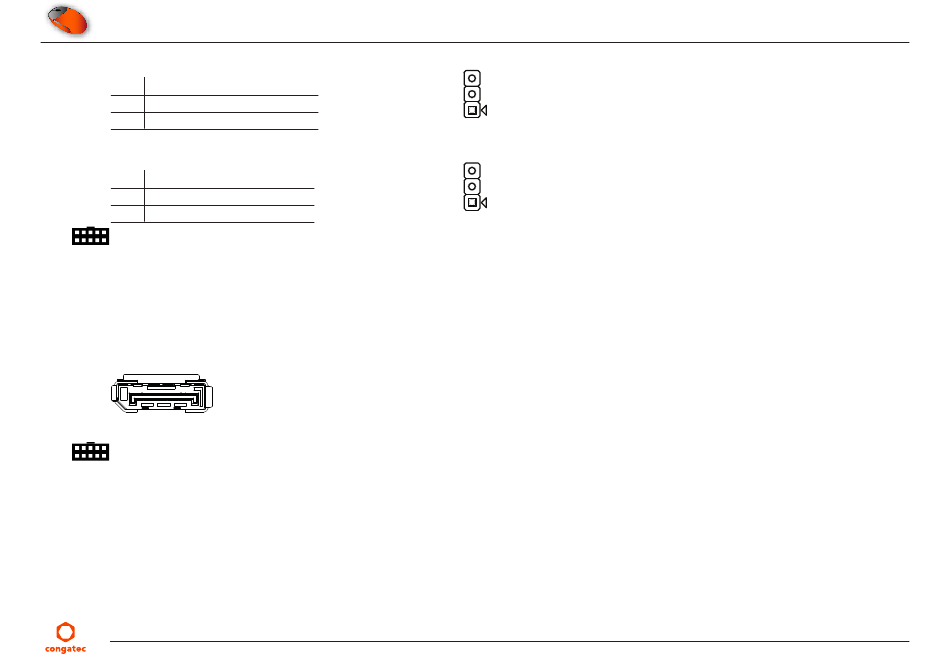

Table 7 X44 - Flat Panel Voltage Settings
Pin Description
1-2 5 V panel power
2-3 3.3 V panel power (default)
Table 8 X45 - Backlight Voltage Settings
Pin Description
1-2 5 V backlight Power
2-3 12 V backlight Power (default)
Connector Type
X44, X45: 2.54 mm pitch, 2x1-pin jumper
4.6 DP++
The conga-HPC/3.5-Mini provides one DP++ port (X2). This port is routed directly to the COM-HPC
X2
Connector Type
X2: Standard DP plug
Copyright © 2024 congatec GmbH
X44
3
2
1
X45
3
2
1
FMC1m001
connector.
®
