4.1.1

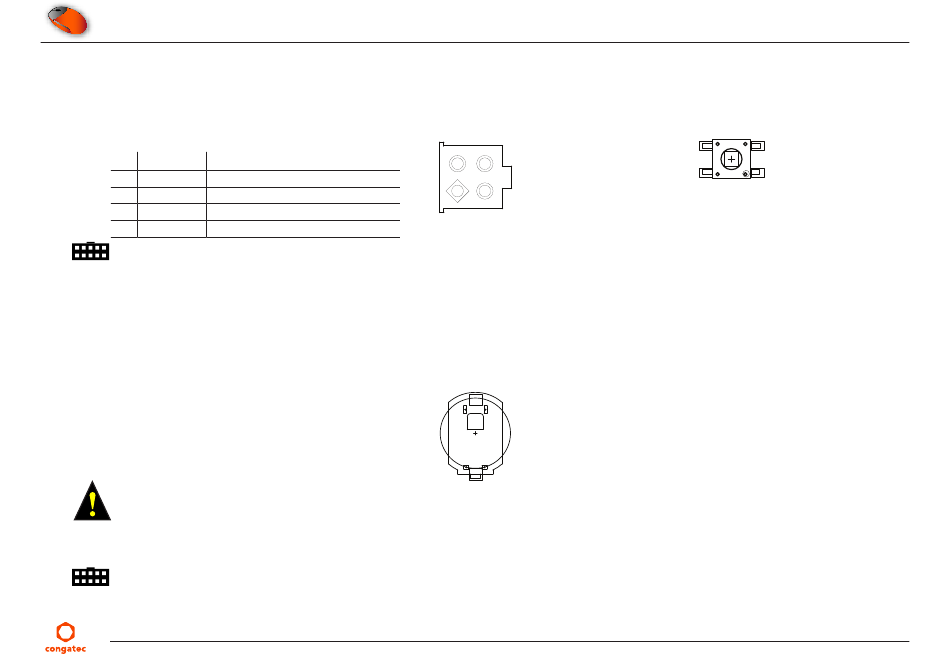

4-Pin ATX Power Connector
The conga-HPC/3.5-Mini provides a standard 4-pin ATX power connector (X26) for an ATX power supply. The COM-HPC
the power-on button (M5) is pressed.
Table 5
X26 - 4-Pin ATX Power Connector Pinout
Pin Signal
Description
1
GND
Power ground
2
GND
Power ground
3
+9 V to 24 V
Power supply +9 VDC to +24 VDC
4
+9 V to 24 V
Power supply +9 VDC to +24 VDC
Connector Type
X26: Standard 4-pin ATX power connector
4.1
CMOS Battery Holder
The conga-HPC/3.5-Mini provides battery holder M17 for a CR2032 battery. The battery supplies power to the RTC and CMOS memory.
Warning
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer's instructions.
Connector Type
M17: CR2032 battery
Copyright © 2024 congatec GmbH
X26
2
4
1
3
M17
FMC1m001
®
module starts after
M5
19/41
