4.11
Ethernet Ports
The conga-HPC/3.5-Mini provides two RJ45 ethernet ports capable of 2.5 Gbps:
• NBASET0 port on connector X7
• NBASET1 port on connector X8

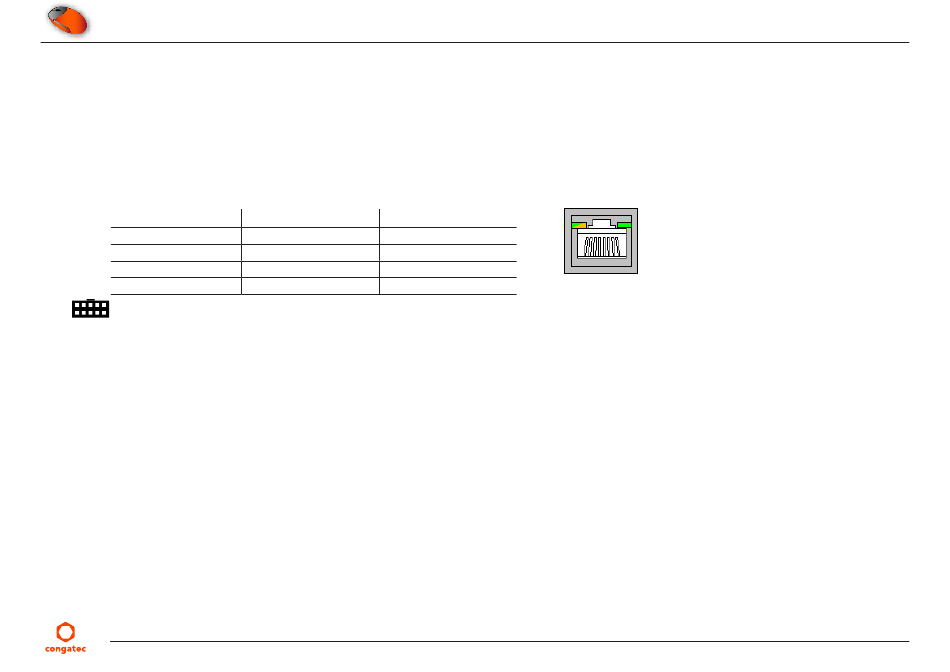

Table 15
X7, X8 - Ethernet Status LEDs Description
Color (LED)
Green (right LED)
Off (left bicolor LED)
Green (left bicolor LED)
Yellow (left bicolor LED)
Connector Type
X7, X8: RJ45 plug
Copyright © 2024 congatec GmbH
Signal
Description
NBASETx_LINK_ACT#
Link activity
-
100 Mbit
NBASETx_LINK_MID#
Half speed (Module specific)
NBASETx_LINK_MAX#
Full speed (Module specific)
X7, X8
8 7 6 5 4 3 2 1
FMC1m001
28/41
