Audio Interfaces

The conga-HPC/3.5-Mini features either a high definition audio (HDA) codec (Realtek ALC888S-VD) by default. Optionally, I2S codec (Cirrus
Logic WM8904) can be featured instead (assembly option). Both codecs support the front audio header (X28) and 4-pole audio jack (X44).
SoundWire ® signals are provided on header X53.
4.12.1

Front Audio Header

The conga-HPC/3.5-Mini features a front audio header (X28).

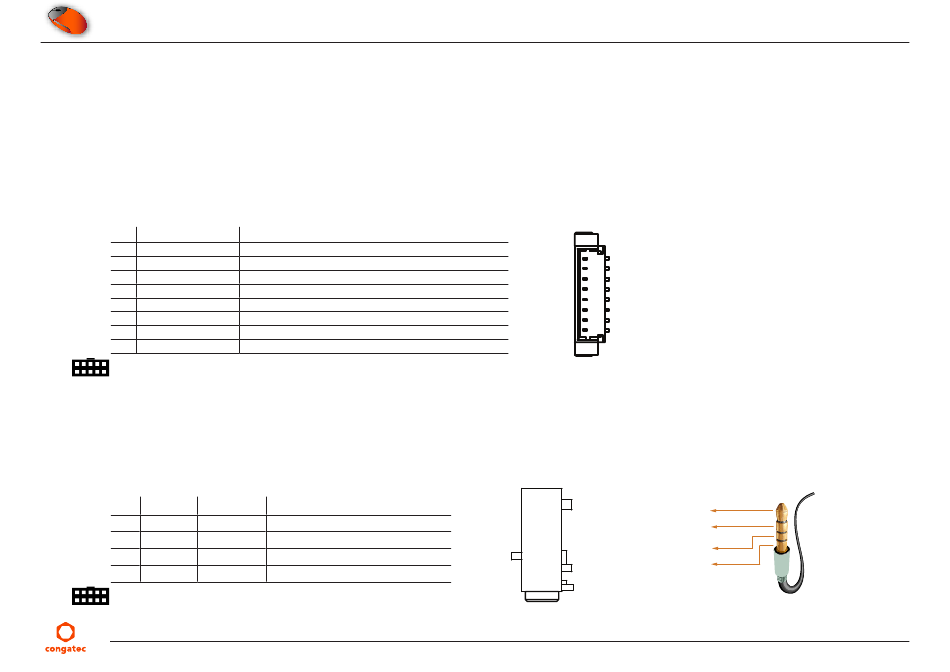

Table 16 X28 - Front Audio Header Pinout Description
Pin Signal
1 LINE2_R
2 LINE2_L
3 A_GND
4 SENSE_B_HPOUT
5 SENSE_B_MIC
6 A_GND
7 MIC2_L
8 MIC2_R
Connector Type
X28: 1.25 mm pitch, 8x1-pin female connector
4.12.2

Audio Jack (4-Pole)

The conga-HPC/3.5-Mini features a 4-pole audio jack (X27) for a 3.5 mm CTIA standard plug.
Table 17 X27 - Audio Jack Pinout
Pin Jack Signal
1 Tip LINE_L
2 Ring 1 LINE_R
3 Ring 2 A_GND
4 Sleeve MIC
Connector Type
X27: 3.5 mm, 4-pole CTIA standard plug
