Power input

After connecting cables to the other ports, connect a cable from the 120 VAC or 240 VAC, 50-60 Hz mains power
source to this IEC plug.
Rear Panel
100/240V ~ 12/10A MAX
BREAKER KER R
50- 50-60Hz 0-60 0-60 0-60 0-60 0-60 0-60 0-60 0-60 0-60 0-60 0-60 0-60 -60 -6 -60 -60 -60 -60 -60 -60 -60 -60 -60 -60 -60 -60 -6 -60 -60 -60 60 60 H H H H H H H H z H H H H H H H H H H
Connect to
mains power.

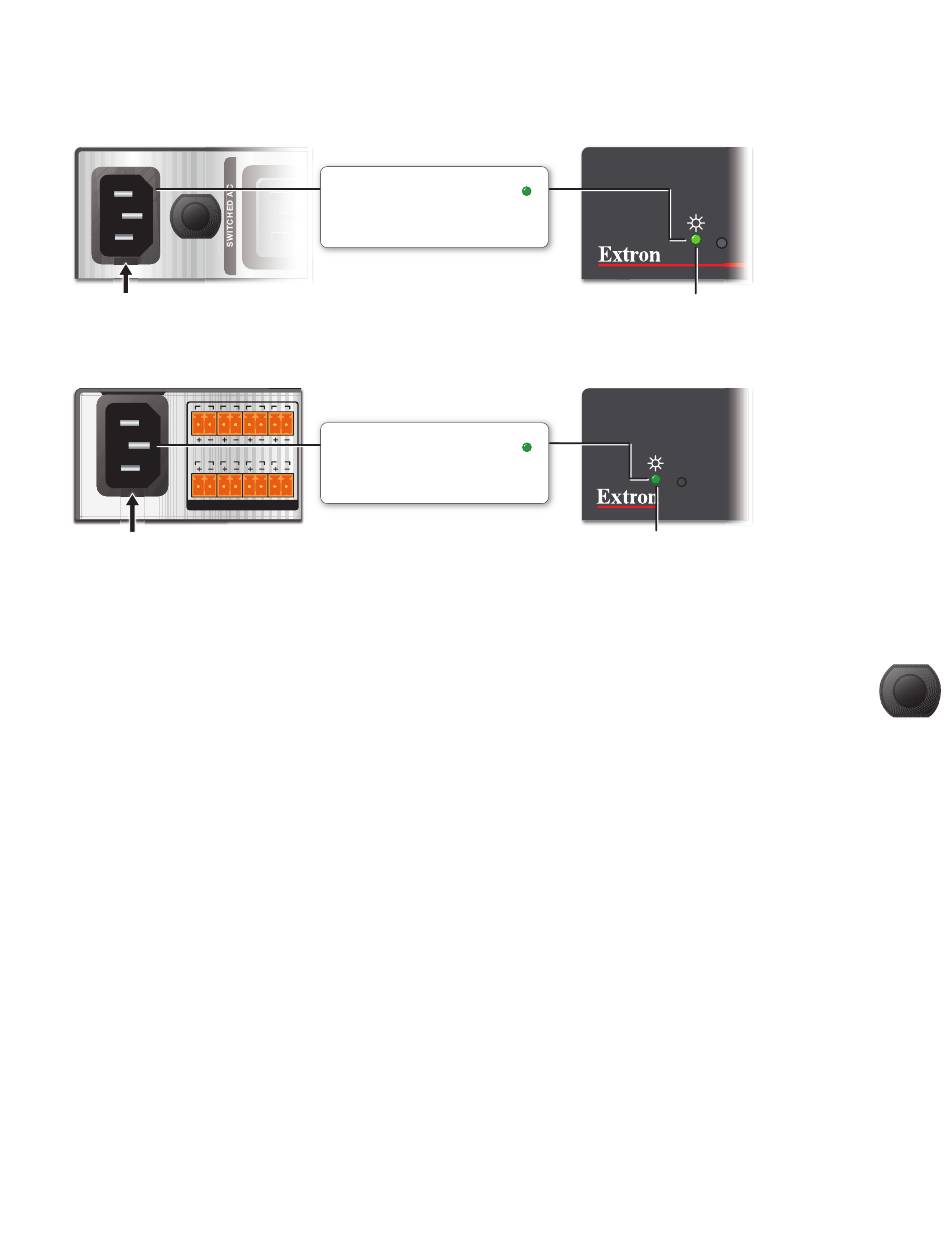

Figure 10. Power Input, IPL EXP PDU4H
Rear Panel
1 2
60W MAX TOTAL
5 6
SWITCHED
100-240V ~ 50-60Hz 1.30A MAX 50 50- 50 0- 0 - 0 0- -60 -6 - 6 - 6 6 6 0 0 0H 0 H 0 0 0 0 0 0 0 0H H H z Hz Hz
Connect to
mains power.
Figure 11. Power Input, IPL EXP PDU8L

Circuit breaker (IPL EXP PDU4H)

The rear panel of the IPL EXP PDU4H features a 12 A rated circuit breaker. When a fault condition
occurs, the breaker is triggered, which stops power output. Any attempt to control the AC outputs is
ignored while the fault condition is present. The front panel Breaker LED lights. This condition can be
monitored and the system can be configured (using available commands) to send an alert e-mail or
perform some other action. After you correct the cause of the overcurrent condition, press the
Breaker button to manually reset the circuit breaker and turn off the LED.
The AC power ports remain off until they are manually turned on via software (GC or GS program), via controls in
the embedded webpage, or by using SIS commands over an SSH connection. This prevents inadvertent damage
to equipment when the user resets the switch before the condition is cleared.
Power output — switched AC power output (IPL EXP PDU4H)
The IPL EXP PDU4H features switched, monitored AC power output ports to provide power to various AV products.
•
Power output can be toggled on and off using manual contact closure control, SIS commands, configuration
or programming commands, or controls in the embedded web page.
•
These ports are monitored continuously for total combined current draw (aggregate current sensing). They
remain on as long as there is no overload condition and as long as they are set to "On".
•
The system can be set up to monitor the circuit breaker. The AC current value and circuit breaker status are
shown in the IPL EXP PDU4H embedded web page. The system can be configured to alert users in the event
of a power fault interruption.
•
The IPL EXP PDU4H provides a maximum output of 12 A at 120 VAC or 10 A at 240 VAC, combined, for all
the AC output ports together.
