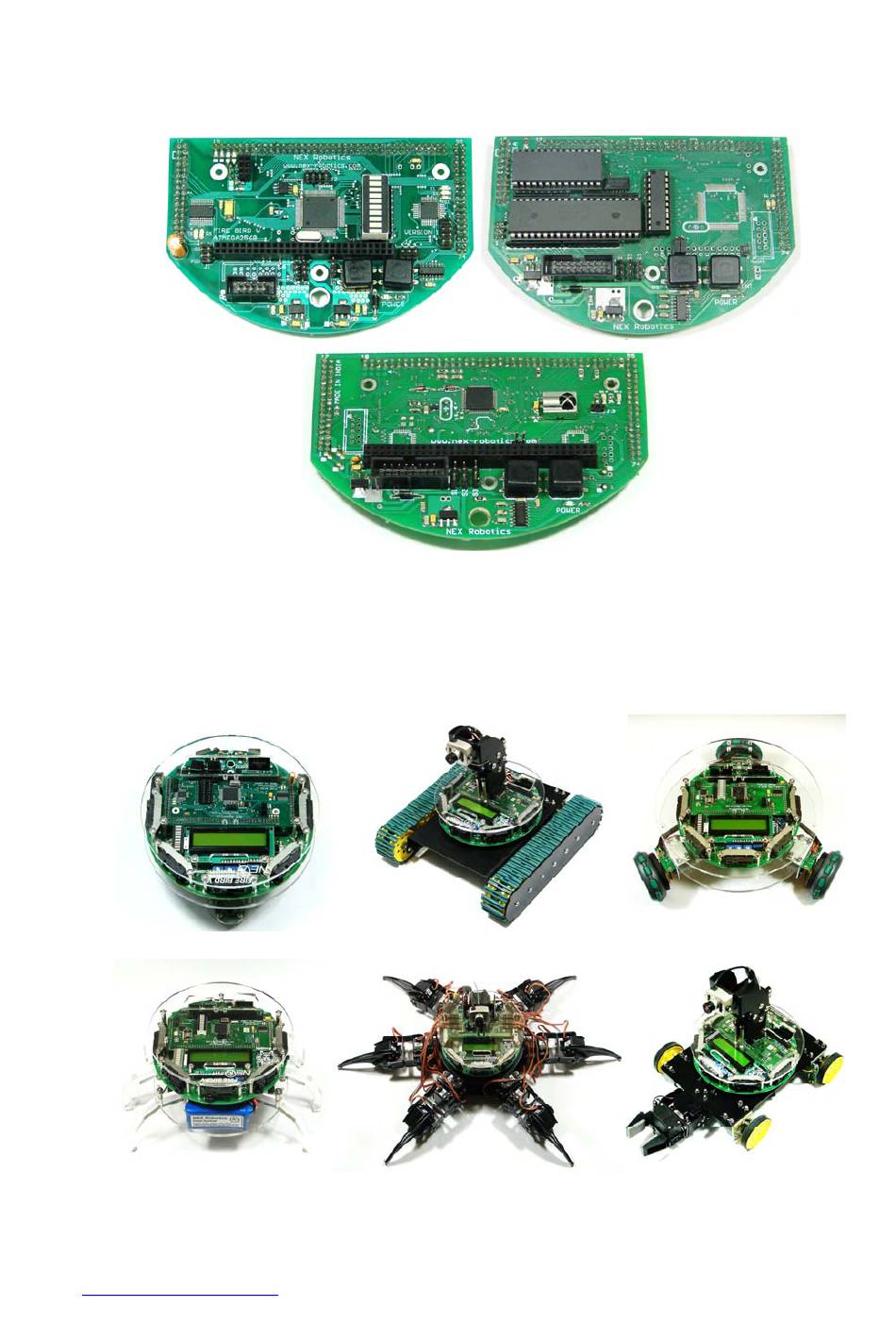

Figure 1.2: ATMEGA2560 (AVR), P89V51RD2 (8051) and LPC2148 ARM7
microcontroller adaptor boards for Fire Bird V
1.1 Avatars of Fire Bird V Robot
All Robots use the same main board and microcontroller adaptor board. All Fire Bird V Robots
share the same unified architecture.
Fire Bird V Fire Bird V Tank Fire Bird V Omnidirectional Robot
Fire Bird V Insect Fire Bird V Hexapod Fire Bird V 4WD with Gripper
Figure 1.3: Avatars of Fire Bird V Robot
