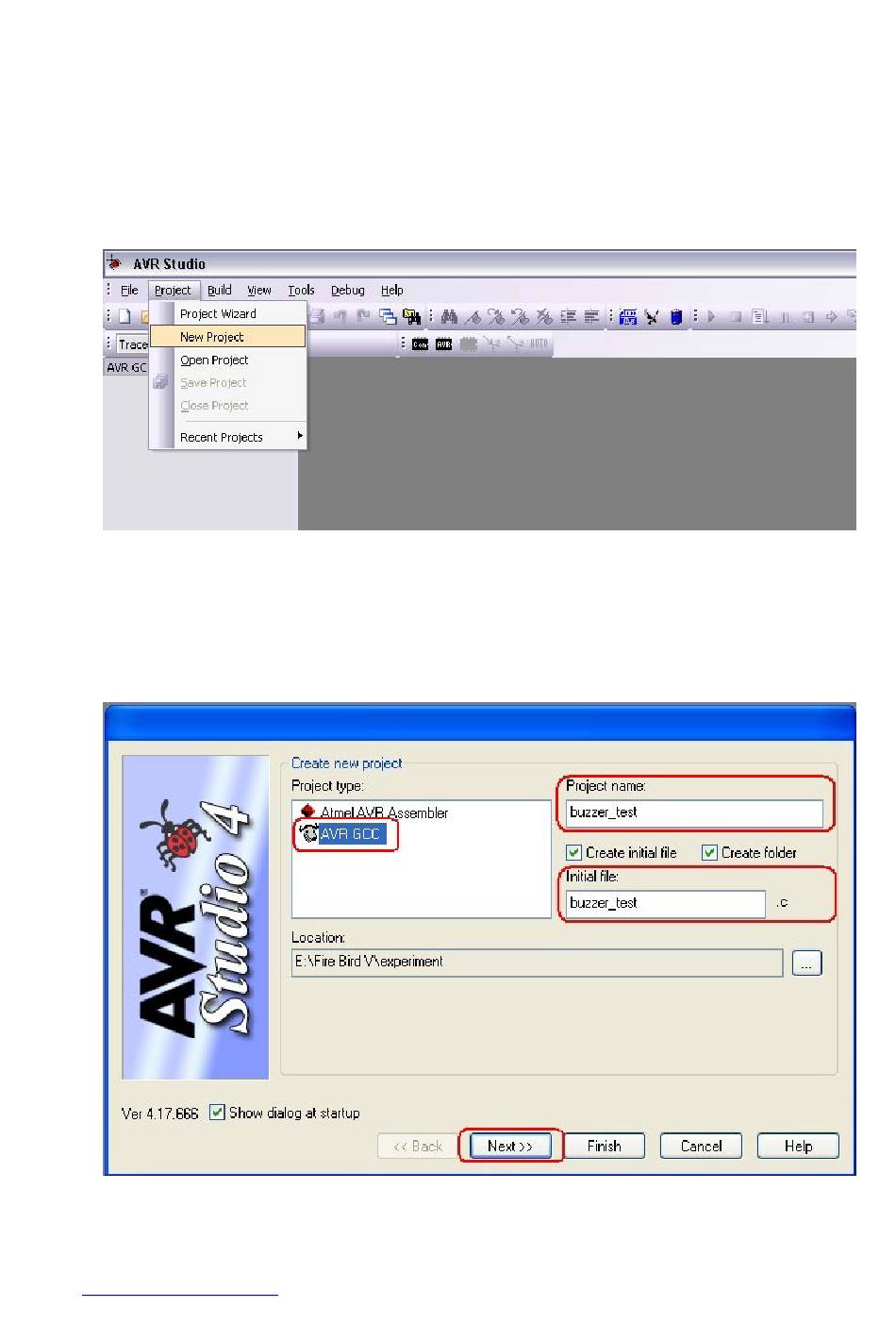

1. Open AVR Studio. If any project is running it can be closed by clicking on Project in the
menu bar and select Close Project.
2. To create a new project, click on Project in the menu bar and select "New Project".
3. Select Project Type as "AVR GCC". Type project name in the "Project name" window. In this
case it is "buzzer_test". Also check on Create initial file and Create folder check box. This will
create all the files inside the new folder. In the Location window select the place where would
like to store your project folder and then click "Next".
www.nex-robotics.com
Figure 2.17
Figure 2.18
