NEX Robotics
2.8 Loading your code on the robot using ATMEL's AVRISP mkII
programmer
AVRISP mkII programmer from the ATMEL is the most versatile programmer. It is very easy to
use and has more features. It is the most recommended programmer for the robot after AVR
Bootloader from NEX Robotics.
Step 1:
1. Connect AVRISP mkII to the PC. It will install driver automatically provided that USB
driver installation option is selected while installing AVR Studio. For more details refer
to figure 2.13.
2. Start AVR Studio
3. Go to "Tools" tab and click on "Program AVR". Select connect option.
4. Window as shown in figure 2.43 will open.
www.nex-robotics.com

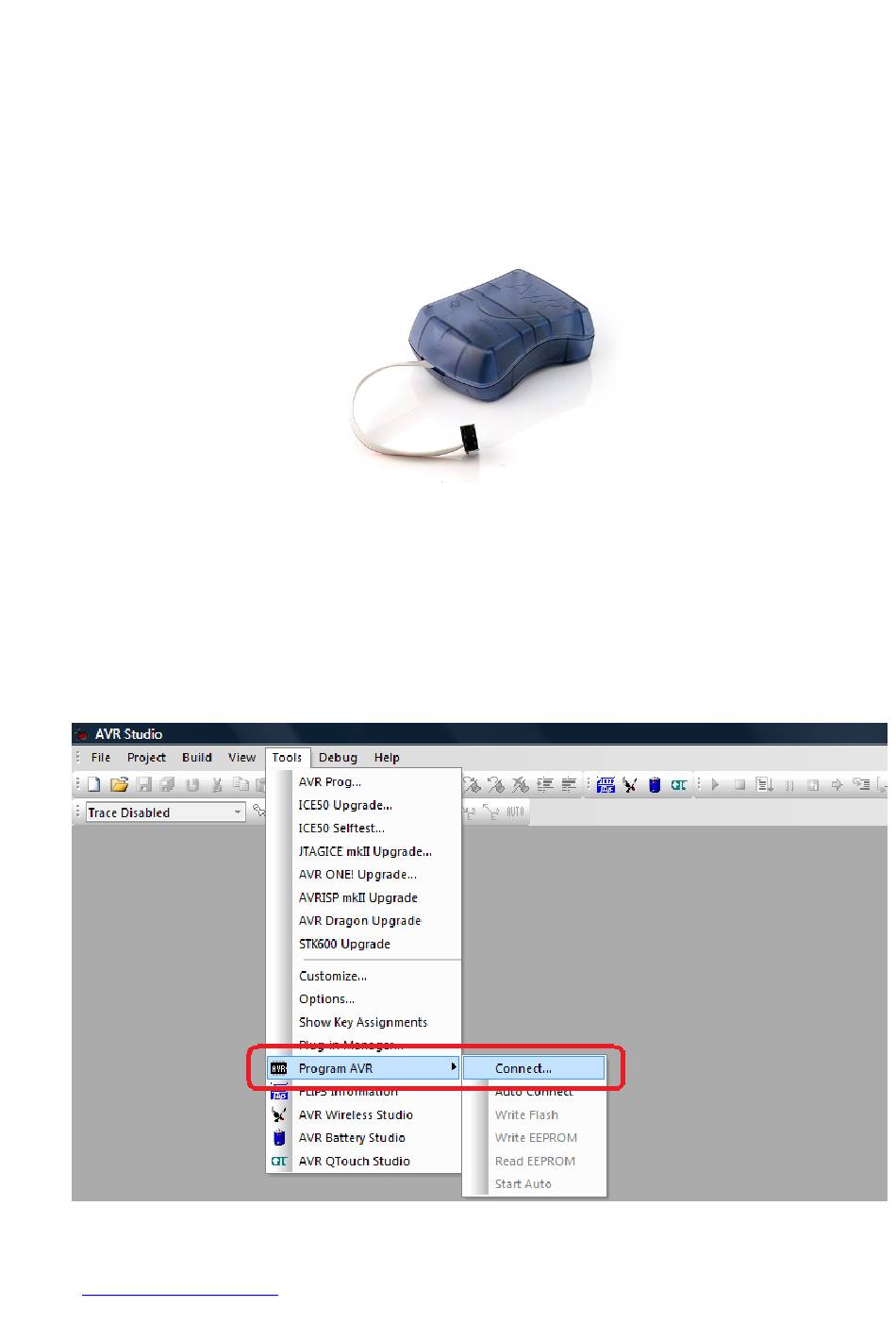

Figure 2.41: AVRISP mkII
Figure 2.42
Fire Bird V Software Manual
36
