2.5 Debugging the code in AVR studio
After successful compilation of the code we can debug the code by AVR Debugger provided by
AVRStudio. Here is the illustration of debugging of code given in Exp1 (buzzer ON-OFF
folder).

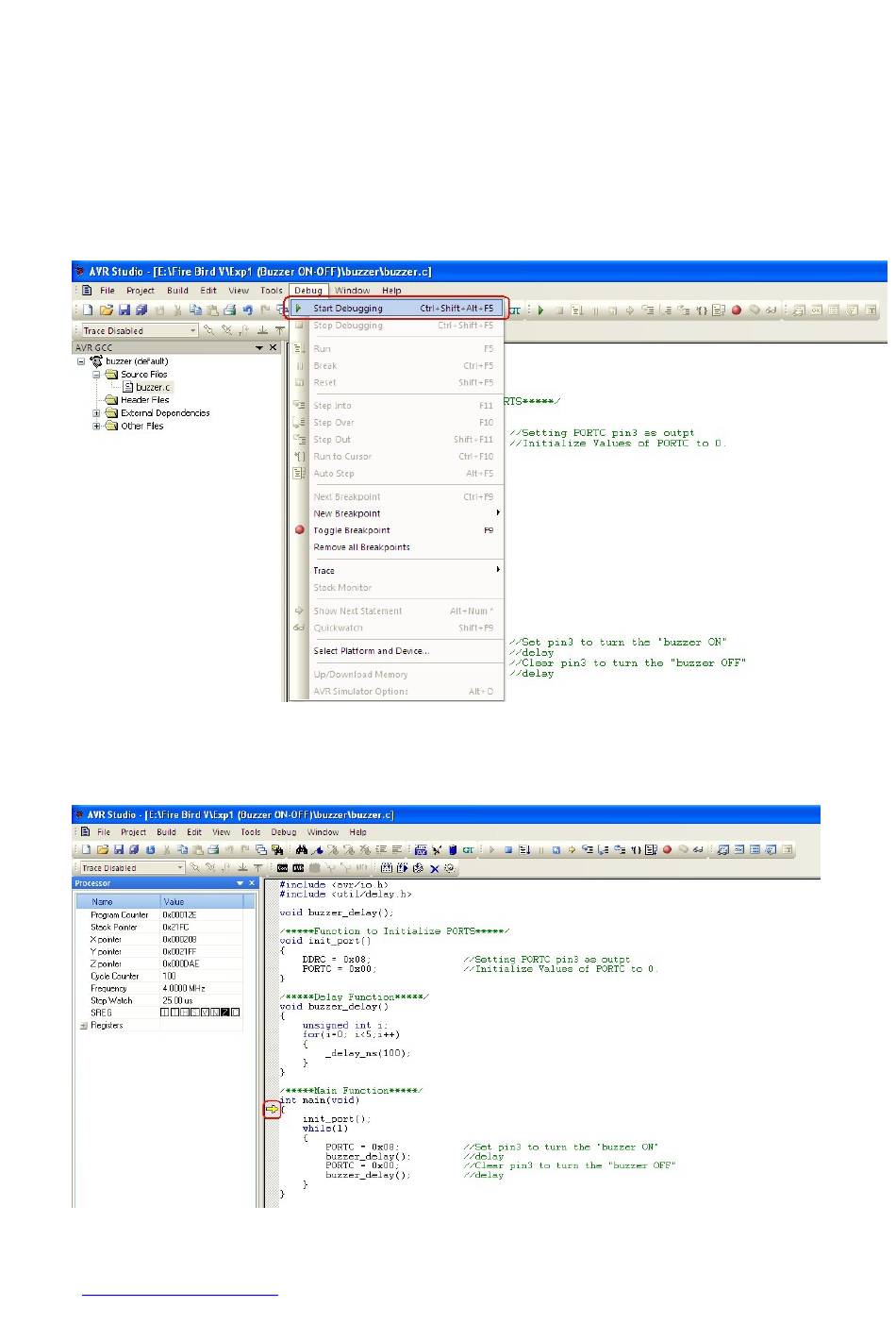

Click on Debug tab in the menu and click on "Start Debugging".
Now debugging mode is started and an arrow is visible at the first line of our main function from
where the debugging will start.
www.nex-robotics.com
Figure 2.26
Figure 2.27
