NEX Robotics

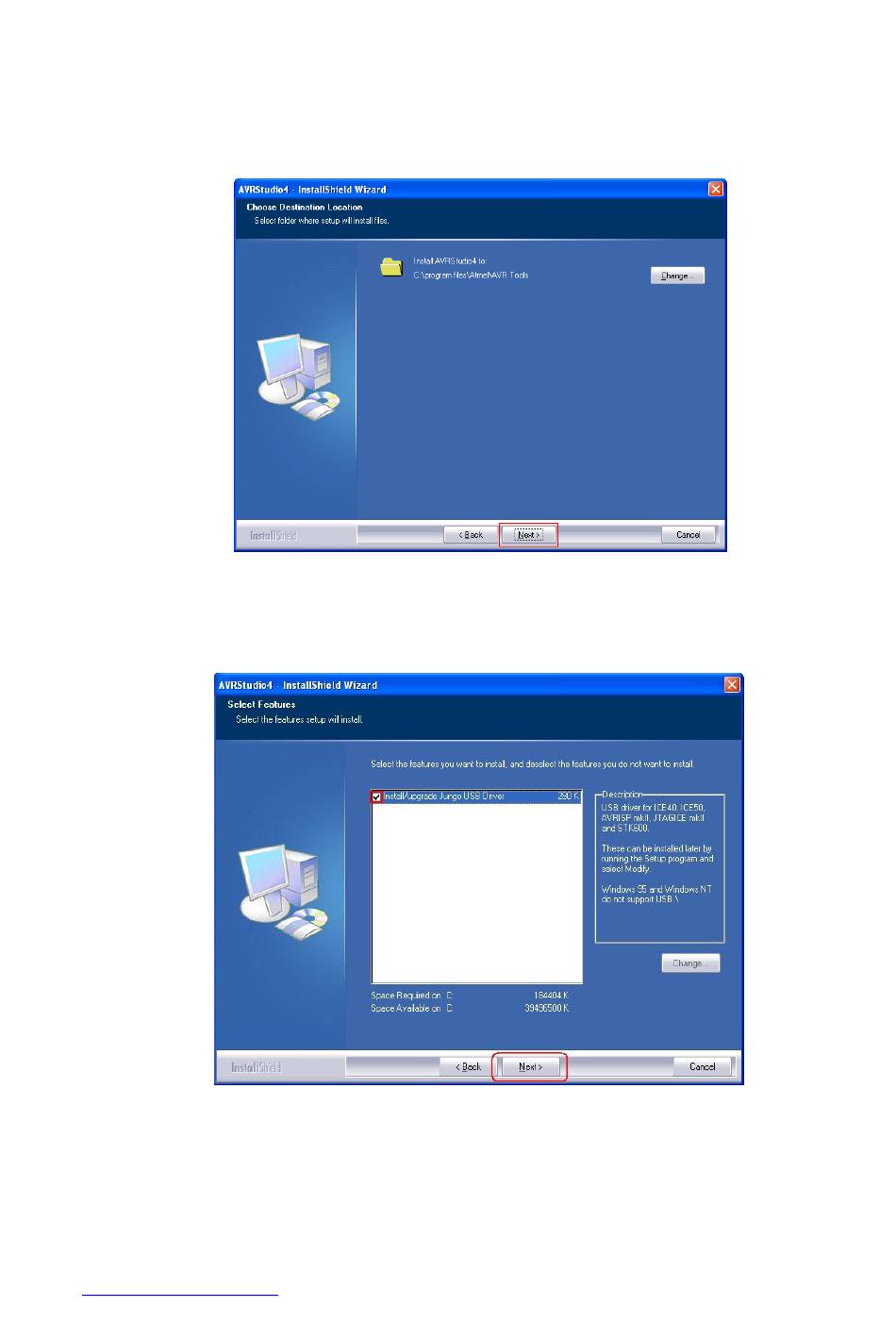

Now choose the destination drive. Select the same drive in which your operating system and
WINAVR is installed.
Select for the "Install / upgrade Jungo USB Driver" to support In System Programming (ISP) by
AVRISP mkII
Important: If "Install / upgrade Jungo USB Driver" is not selected then AVRISP mkII
programmer will not work with the AVR Studio.
www.nex-robotics.com
Figure 2.12
Figure 2.13
Fire Bird V Software Manual
17
