degrees free of obstructions; otherwise, LIDRA mapping and obstacle avoidance
will be affected. The LIDAR layer is shown in blue in the above figure.
Depth Camera Clearance Area

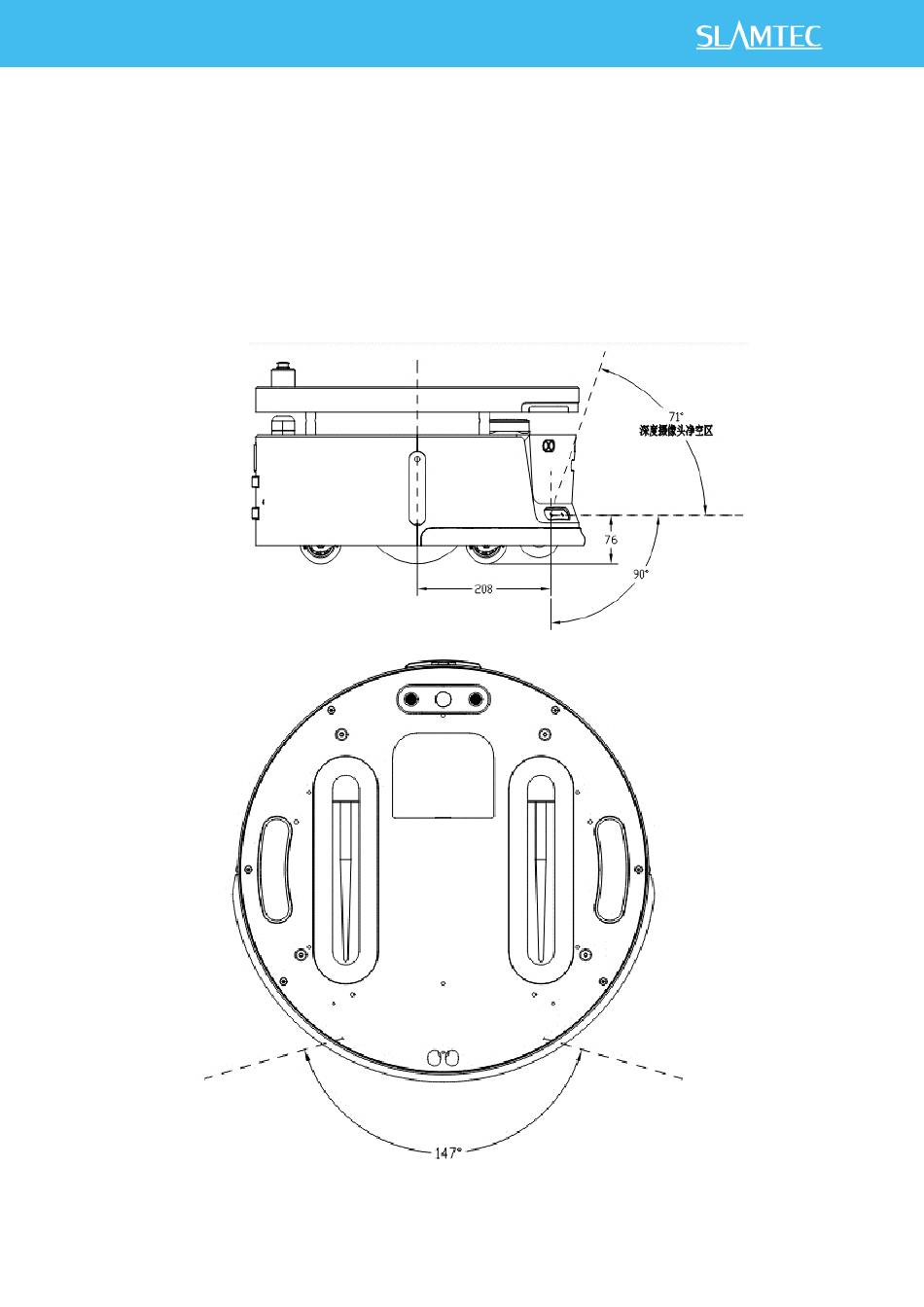

There is a depth camera on the robot base and it has a FOV as shown in the
following figure. When designing the upper side structure, please make sure that
the above FOV is not obscured or interfered with.
19 / 32
