Slamtec Apollo 2.0 User Manual page 16

Safety Rim Range
Extended Platform for Upper Structure Design
5-M6 Reserve holes
for assembling

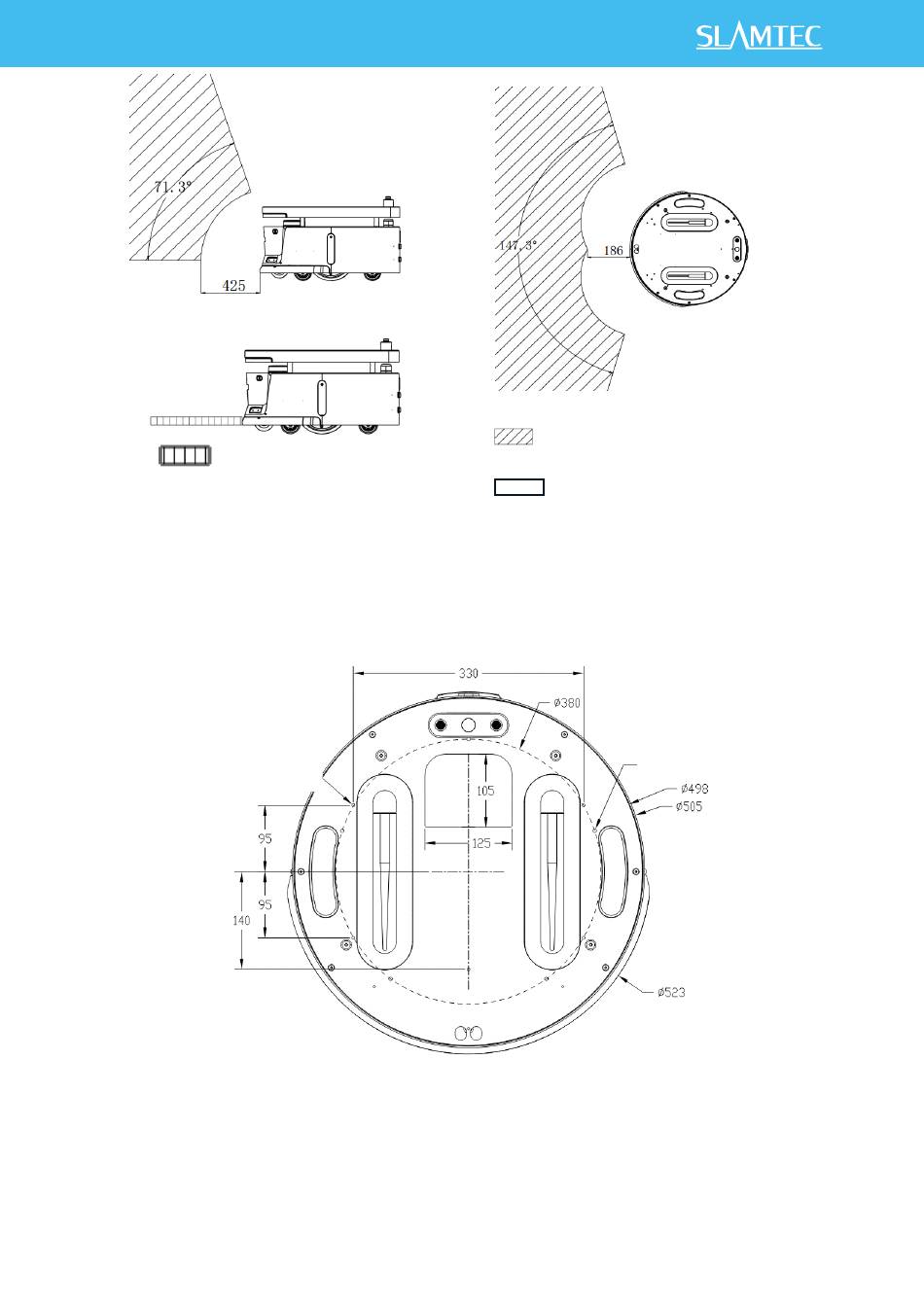

As shown in the figure above, Apollo 2.0 is designed with a total of 5 M5 and 5
M6 through thread holes for the installation and fixing of the upper structure. It is
recommended to use screws with spring pads and anti-turpentine glue.
Depth Camera Sensor Range
Blind Zone
16 / 32
5-M6 Reserve holes
for assembling
