Loudspeaker Type - CyberData VoIP Loudspeaker Amplifier Part #010859 Operation Manual

See
2.2.3.1 Using the Line Out Output

2.2.3.2 Loudspeaker Type

The CyberData VoIP Loudspeaker Amplifier supports an 8 Ohm Bogen or equivalent unamplified
loudspeaker. See
VoIP Loudspeaker Amplifier Operations Guide
Table 2-5 for details about connecting the loudspeaker amplifier.
Table 2-5. Loudspeaker Amplifier Connections
Connection Connection Details
Loudspeaker Use two binding posts for up to 0.083 inch
●
diameter loudspeaker wire.
Ethernet Use a RJ 45 cable.
●
a
For a phase connection, use a press-down
AC
●
connector for 14 AWG solid copper wire.
For a neutral connection, use a press-down
●
connector for 14 AWG solid copper wire.
For an earth/ground connection, use a screw-
●
down connector for 14 AWG solid copper wire.
a.Prior to installation, consult local building/electrical code requirements.
Figure 2-7.

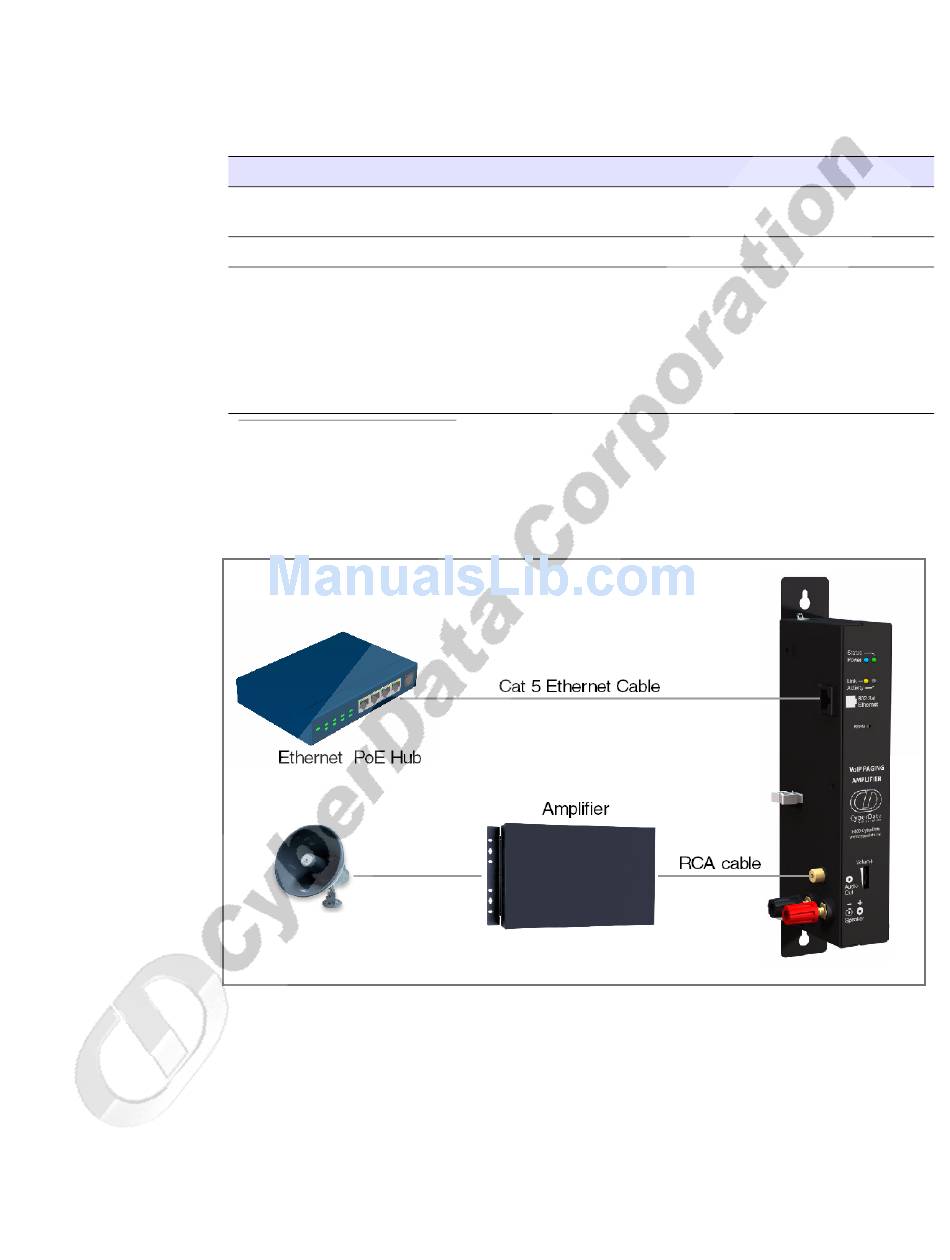

Figure 2-6. Using the Line Out Output
930111F
Installing the VoIP Loudspeaker Amplifier
Loudspeaker Amplifier Setup
Location
VoIP paging amplifier
VoIP paging amplifier
AC panel
CyberData Corporation
9
