Summary of Contents for CyberData 010861 930106A
- Page 1 VoIP Loudspeaker Amplifier Operations Guide (PoE) Part #010861 930106A...
- Page 2 CyberData Corporation. This manual, and the products, software, firmware, and/or hardware described in this manual are the property of CyberData Corporation, provided under the terms of an agreement between CyberData Corporation and recipient of this manual, and their use is subject to that agreement and its terms.
-
Page 3: Revision History
Revision History Revision CyberData Corporation Date Released Description of Changes 11/06/06 This is the first release of this manual. 930106A VoIP Loudspeaker Amplifier Operations Guide... - Page 4 CyberData Corporation 930106A VoIP Loudspeaker Amplifier Operations Guide...
-
Page 5: Table Of Contents
4.0.1 In a LINUX Environment ...29 4.0.2 In a Windows Environment ...29 Chapter 5 Troubleshooting/Technical Support 5.1 Frequently Asked Questions (FAQ) ...31 5.2 Documentation ...31 5.3 Contact Information ...31 5.4 Warranty ...32 Index VoIP Loudspeaker Amplifier Operations Guide 930106A CyberData Corporation... - Page 6 Contents CyberData Corporation 930106A VoIP Loudspeaker Amplifier Operations Guide...
-
Page 7: Chapter 1 Product Overview

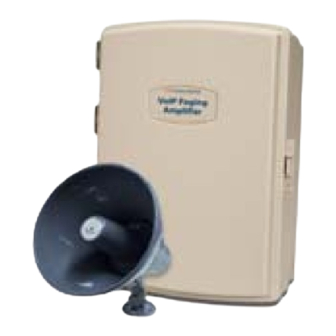

Figure 1 illustrates how the VoIP Loudspeaker Amplifier (PoE) is normally installed as part of a public address system. VoIP Loudspeaker Amplifiers—PoE VoIP Loudspeaker Amplifier Operations Guide Figure 1. Public Address System Generic PoE Hub VoIP Phone 930106A Server CyberData Corporation... -
Page 8: Product Features
PCMA (G.711 A-law) Packet Time 20 ms 1.4 Supported SIP Servers The following link contains information on how to configure the loudspeaker amplifier for the supported SIP servers: http://www.CyberData.net/support/voip CyberData Corporation VoIP Loudspeaker Amplifier 930106A ● SIP (RFC 3261) compatible ●... -
Page 9: Product Specifications
Part Number Dimensions Weight VoIP Loudspeaker Amplifier Operations Guide Specification 96dB/1W/1M S.P. Level 8 W PoE/16 W with internal power supply 10/100 Mbps 802.3af compliant SIP RFC 3261 010859 14” x 10” x 4” 4.4 lbs. 930106A Product Overview CyberData Corporation... - Page 10 Product Overview CyberData Corporation 930106A VoIP Loudspeaker Amplifier Operations Guide...
-
Page 11: Chapter 2 Installing The Voip Loudspeaker Amplifier
Quantity Loudspeaker Amplifier Assembly Installation Quick Reference Guide Loudspeaker Amplifier Mounting Accessory Kit (part #070057A) which includes: 3 x #8 x 1-1/4” truss head screws VoIP Loudspeaker Amplifier Operations Guide Table 2-1. Parts List Part Name 930106A Illustration CyberData Corporation... -
Page 12: Loudspeaker Amplifier Setup
Installing the VoIP Loudspeaker Amplifier 2.2 Loudspeaker Amplifier Setup Set up and configure each loudspeaker amplifier before you mount it. CyberData delivers each loudspeaker amplifier with the factory set default values indicated in Table 2-2: Parameter IP Addressing IP Address... -
Page 13: Loudspeaker Amplifier Jumpers
OFF -> Low Power (21V) Position B -> Low Power Table 2-4. Jumper Settings—High Power—Non-PoE Compliant Setting ON -> High Power (21V) ON -> High Power (21V) Position A -> High Power 930106A Installing the VoIP Loudspeaker Amplifier CyberData Corporation... -
Page 14: Connect The Loudspeaker Amplifier
2.2.3 Connect the Loudspeaker Amplifier Figure 2-3 illustrates how to connect the VoIP Loudspeaker Amplifier (PoE). Figure 2-3. Connect a Loudspeaker Ethernet Hub Optional 2 Speaker Configuration Standard 1 Speaker Configuration 8 Ohms 8 Ohms CyberData Corporation 930106A VoIP Loudspeaker Amplifier Operations Guide... -
Page 15: Loudspeaker Type
Ethernet a.Consult a licensed electrician for local electrical code requirements. 2.2.3.1 Loudspeaker Type The CyberData VoIP Loudspeaker Amplifier supports an 8 Ohm Bogen or equivalent unamplified loudspeaker. See 2.2.3.2 Cabling/Wiring You may connect a loudspeaker to a loudspeaker amplifier with a good quality speaker cable that is limited to 25 feet in length. -
Page 16: Confirm Operation
Power Status Link CyberData Corporation Figure 2-5. Loudspeaker Amplifier LEDs—Power and Link Figure 2-6. Loudspeaker Amplifier LEDs—Status and Activity Table 2-6. Loudspeaker Amplifier LEDs Color... -
Page 17: Confirm The Ip Address, Test The Audio, And Check The Volume
Table 2-6. Loudspeaker Amplifier LEDs (continued) Color Function Green The Activity LED blinks to indicate network traffic. (Figure 2-7) on the loudspeaker amplifier face to announce Figure 2-7. RTFM Switch 930106A Installing the VoIP Loudspeaker Amplifier RTFM switch CyberData Corporation... -
Page 18: Adjust The Volume
20 seconds will restore the loudspeaker amplifier to the factory default settings. See 2.2.6 Adjust the Volume To adjust the loudspeaker amplifier volume, turn the Volume dial amplifier face. CyberData Corporation Section 2.5, "Restore the Factory Default Settings" Figure 2-8. Volume Control 930106A (Figure... -
Page 19: Configure The Loudspeaker Amplifier Parameters
Web Access Password: admin VoIP Loudspeaker Amplifier Operations Guide Installing the VoIP Loudspeaker Amplifier Chapter 3, “Mounting the Enclosure” Table 2-7. Factory Default Settings Factory Default Setting static 192.168.3.10 admin admin 255.255.255.0 192.168.3.1 (Figure 2-9): 930106A Table 2-7. CyberData Corporation... - Page 20 Web Page Item Serial # Ethernet Address IP Addressing IP Address Subnet Mask Default Gateway CyberData Corporation Figure 2-9. Home Page VoIP Loudspeaker Amplifier Table 2-8. Home Page Overview Description Device serial number. Device ethernet address. Shows the current IP addressing setting (DHCP or static).
-
Page 21: Configure The Network Parameters
Click on this button to save your configuration settings. Changing a parameter that has an asterisk next to it will cause a system reboot when saved. 930106A Installing the VoIP Loudspeaker Amplifier (Figure 2-10). Table 2-9. Table 2-9 . If you select DHCP, CyberData Corporation... - Page 22 4. Connect the speaker to the target network. 5. From a system on the same network as the speaker, open a browser with the new IP address of the speaker. CyberData Corporation Table 2-9. Network Setup Parameters (continued) Description Link to the Speaker Setup page.
-
Page 23: Set Up The Loudspeaker Amplifier
Changing a parameter that has an asterisk next to it will cause a system reboot when saved. Click on this button to do an audio test. Generates a voice message for testing the speaker audio quality and volume. 930106A Installing the VoIP Loudspeaker Amplifier Figure 2-11 CyberData Corporation... -
Page 24: Configure The Sip Parameters
1. Click SIP Setup to open the SIP Setup page Note For specific server configurations, go to the following URL: http://www.CyberData.net/support/voip CyberData Corporation Table 2-10. Loudspeaker Amplifier Setup Parameters (continued) Description Link to the Network Setup page. Link to the SIP Setup page. - Page 25 Installing the VoIP Loudspeaker Amplifier Figure 2-12. SIP Setup Page VoIP Loudspeaker Amplifier VoIP Loudspeaker Amplifier Operations Guide 930106A CyberData Corporation...
- Page 26 SIP Registration* Unregister on Reboot* Register Expiration* 3. After changing the parameters, click Save Settings. CyberData Corporation Table 2-11. SIP Setup Parameters Description Enter the SIP server represented as either a numeric IP address in dotted decimal notation or the fully qualified host name (FQHN) up to 64 characters.
-
Page 27: Upgrade The Firmware And Reboot The Loudspeaker Amplifier
If you do not already have a TFTP server running on your network, see TFTP Server”. 2. Retrieve the latest speaker firmware from the CyberData website: www.CyberData.net/support/voip 3. Unzip the speaker version file. This file may contain the following: •... - Page 28 Web Page Item System Configuration Bootname Kernel Application CyberData Corporation Figure 2-13. Firmware Upgrade Page VoIP Loudspeaker Amplifier if you are uploading the Kernel and Application files. shows the web page items on the Firmware Upgrade page. Table 2-12. Firmware Upgrade Parameters Description Shows the current configuration.
-
Page 29: Reboot The Loudspeaker Amplifier
Link to go to the SIP Setup page. Link to the Home page. Click on this button to reboot the system. Page". 930106A Installing the VoIP Loudspeaker Amplifier Section 2.3.1, "Log in to the (Figure 2-14). Use the Reboot CyberData Corporation... - Page 30 Installing the VoIP Loudspeaker Amplifier Figure 2-14. Reboot System Section VoIP Loudspeaker Amplifier 2. Click Reboot. A normal restart will occur as per the Status LED section of Table 2-6. CyberData Corporation 930106A VoIP Loudspeaker Amplifier Operations Guide...
-
Page 31: Restore The Factory Default Settings
The loudspeaker amplifier reboots. VoIP Loudspeaker Amplifier Operations Guide 2-13. The other parameters in the current loudspeaker amplifier configuration Table 2-13. Factory Default Settings Factory Default Setting static 192.168.3.10 admin admin 255.255.255.0 192.168.3.1 930106A Installing the VoIP Loudspeaker Amplifier CyberData Corporation... - Page 32 Installing the VoIP Loudspeaker Amplifier CyberData Corporation 930106A VoIP Loudspeaker Amplifier Operations Guide...
-
Page 33: Chapter 3 Mounting The Enclosure
For mounting, use the three #8 SHEET METAL SCREWS to secure the enclosure. VoIP Loudspeaker Amplifier Operations Guide Table 3-14. Table 3-14. Wall Mounting Components (Part of the Accessory Kit) Part Name #8 Sheet Metal Screws to mount the enclosure. 930106A Illustration CyberData Corporation... - Page 34 Mounting the Enclosure Figure 3-1. Loudspeaker Amplifier Enclosure Assembly CyberData Corporation 930106A VoIP Loudspeaker Amplifier Operations Guide...
-
Page 35: Chapter 4 Setting Up A Tftp Server
4. You can find several options online for setting up a Solarwinds server. This example explains how to use the Solarwinds freeware TFTP server, which you can download at: http://www.CyberData.net/support/voip VoIP Loudspeaker Amplifier Operations Guide /tftpboot/ Configure Security tab Transmit Only. 930106A is the path to the directory you created in CyberData Corporation... - Page 36 Setting up a TFTP Server CyberData Corporation 930106A VoIP Loudspeaker Amplifier Operations Guide...
-
Page 37: Chapter 5 Troubleshooting/Technical Support
Phone: 831-373-2601, Extension 136 Email: RMA@CyberData.net When returning a product to CyberData, an approved CyberData RMA number must be printed on the outside of the original shipping package. No product will be accepted for return without an approved RMA number. Send the product, in its original package, to the following address:... -
Page 38: Warranty
CyberData warrants its product against defects in material or workmanship for a period of two years from the date of purchase. Should the product fail within the warranty period, CyberData will repair or replace the product free of charge. This warranty includes all parts and labor. -
Page 39: Index
IP settings 13 network 15 SIP 18 using Web interface 13 configuration home page 13 CyberData contact information, corporate, sales, tech support, service 31 default gateway 6, 13, 25 IP address 6, 13, 25 loudspeaker amplifier settings 33... - Page 40 13 mounting 27 parts list 5 product features 2 product overview product features 2 CyberData Corporation product specifications 3 supported protocols 2 supported SIP servers 2 typical system installation 1 product specifications 3 protocols supported 2 reboot 23, 25...
- Page 41 6, 13, 25 web access username 6, 13, 25 web configuration log in address 13 web-based loudspeaker amplifier configuration 13 weight 3 Windows, setting up a TFTP server on 29 VoIP Loudspeaker Amplifier Operations Guide 930106A CyberData Corporation...
- Page 42 CyberData Corporation 930106A VoIP Loudspeaker Amplifier Operations Guide...
