2.2.4 Confirm Operation

After connecting the loudspeaker amplifier to the 802.3af compliant ethernet hub, use the LEDs on
the loudspeaker amplifier face to confirm that the loudspeaker amplifier is operational and linked to
the network.
LED
Power
Status
Link
Activity
VoIP Loudspeaker Amplifier Operations Guide

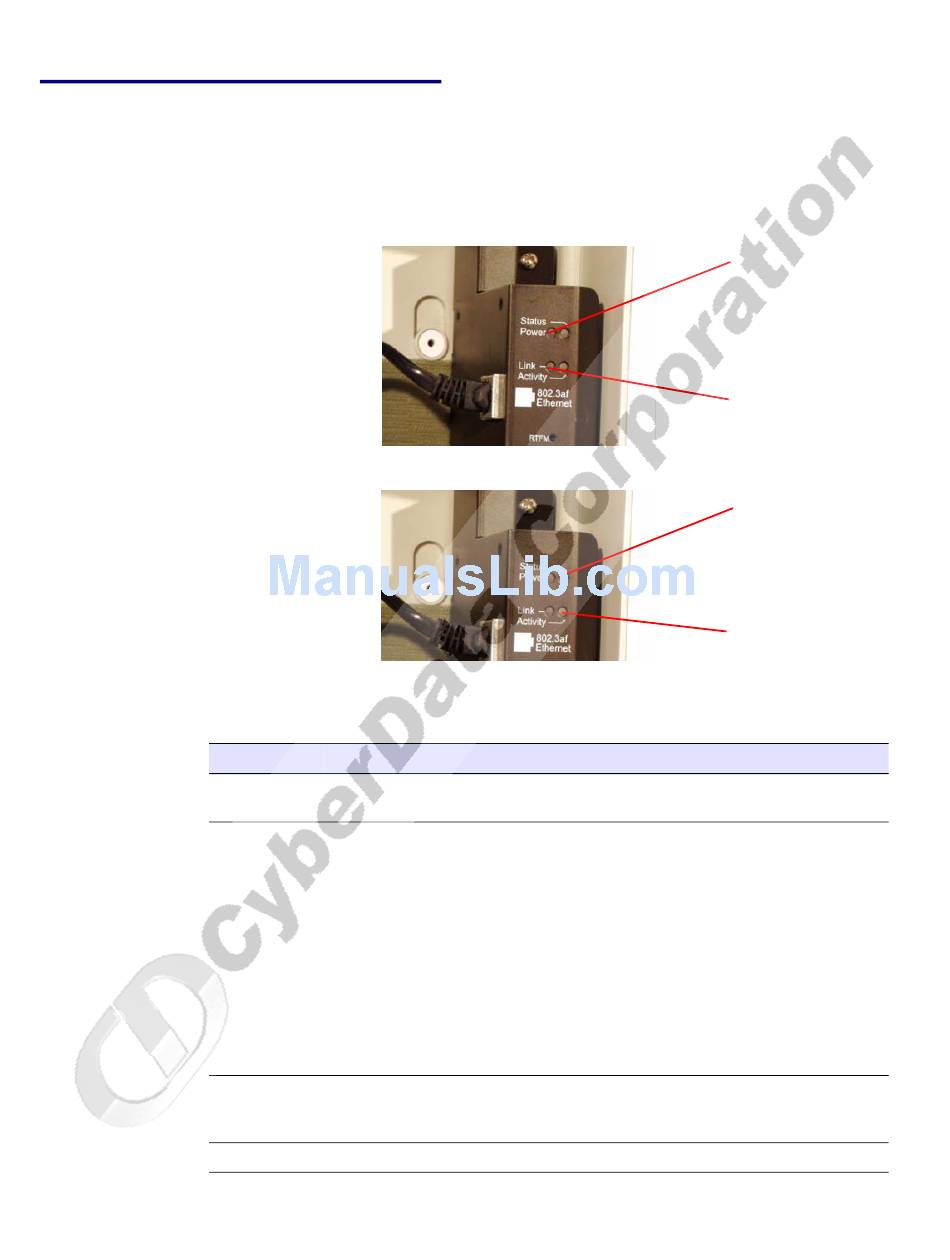

Figure 2-8. Loudspeaker Amplifier LEDs—Power and Link
Figure 2-9. Loudspeaker Amplifier LEDs—Status and Activity
Table 2-6. Loudspeaker Amplifier LEDs
Color Function
Blue/Green The power LED is illuminated a steady
on and blue/green when the amplifier is in the high power mode.
Green After supplying power to the loudspeaker amplifier:
1. The green
seconds to indicate the start of the firmware verification and load
process.
2. After approximately 15 seconds, the Status LED begins to
blink at one second intervals to indicate the start of the firmware
boot process.
3. After approximately 35 seconds, the loudspeaker amplifier
beeps once to indicate that it is operational.
4. The Status LED will continue to blink at one second intervals
to indicate normal operation.
Green/Yellow The Link LED is illuminated
yellow/green
loudspeaker amplifier is established.
Green The Activity LED blinks to indicate network traffic.
930111F
Installing the VoIP Loudspeaker Amplifier
blue
Status LED illuminates after approximately five
green for a 10Mb link or
for a 100Mb link when the network link to the
Loudspeaker Amplifier Setup
Power LED (blue/green)
Link LED (green/yellow)
Status LED (green)
Activity LED (green)
when the power is
