CyberData VoIP V2 Specifications

Now with up to 25 watts output (802.3at)

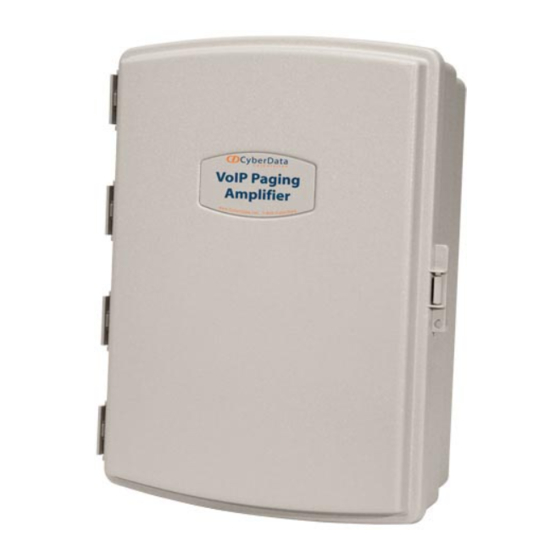

VoIP V2 Loudspeaker Amplifier
The new CyberData V2 SIP-enabled VoIP Loudspeaker
Amplifier provides an easy method for implementing an IP-based
overhead paging system for both new and legacy installations.
With up to 25 watts of driving power (802.3at), the Amplifier
provides direct drive of a standard Horn speaker and supports
a line-out connector for connection to an external amplifier.
The interface is compatible with most SIP-based IP PBX
servers that comply with the SIP RFC 3261. For non-SIP
environments, the Loudspeaker Amplifier can be configured to
listen to multicast address and port number combinations to
form paging zones.
Ringer Mode
The VoIP V2 Loudspeaker Amplifier supports two SIP
extensions. One extension can be assigned to a page group for
auto answer paging. The second extension can be assigned to
a "First-to-Answer" ring group with IP phones. An audio ring file
is activated when the second SIP extension of the ceiling
speaker is dialed. If any of the IP phones in the ring group is
answered (or if the caller hangs up), the Loudspeaker Amplifier
stops ringing.
Features
SIP and Simultaneous Multicast

 Dual-speed ethernet 10/100 Mbps
 Web-based configuration
PoE 802.3at and 802.3af-enabled

 Line-in for background music
Line-out connector

DTMF controlled relay

 Direct 8 Ohm speaker drive
User-uploadable tones and messages

 Digital and manual volume control
 Second SIP endpoint "Night Ringer"
Autoprovisioning

 Auto-call voice message from input port sense
The IP Endpoint Company
CyberData Corporation 3 Justin Court, Monterey, CA 93940

The IP Endpoint Company
Loudspeaker (part #011068) must be purchased separately.
Specifications
Ethernet I/F
Power Input
Operating Temperature
Protocol
Payload Types
Regulatory Compliance
Warranty
Dimensions
Output
Line In:
Input Signal Amplitudes
Input Impedance
Line Out:
Output Signal Amplitudes
Output Level
Total Harmonic Distortion
Output Impedance
Boxed Weight
Part Number
Loudspeaker Amplifier, AC
Loudspeaker Amplifier, Wireless
Loudspeaker Amplifier, PoE
Loudspeaker Part Number
831.373.2601 Fax: 831.373.4193
 
10/100 Mbps
PoE 802.3at or 802.3af
-30 to 55 C (-22 to 131 F)
SIP RFC 3261
G711
FCC Class A
2 Years Limited
14" x 10" x 4"

802.3af - up to 8 watts
 802.3at - up to 25 watts
2.0 VPP maximum
10k Ohm
2.0 VPP maximum
+2dBm nominal
0.5% maximum
10k Ohm
6.5 lbs.
011095
011096
011097
011068
www.cyberdata.net

