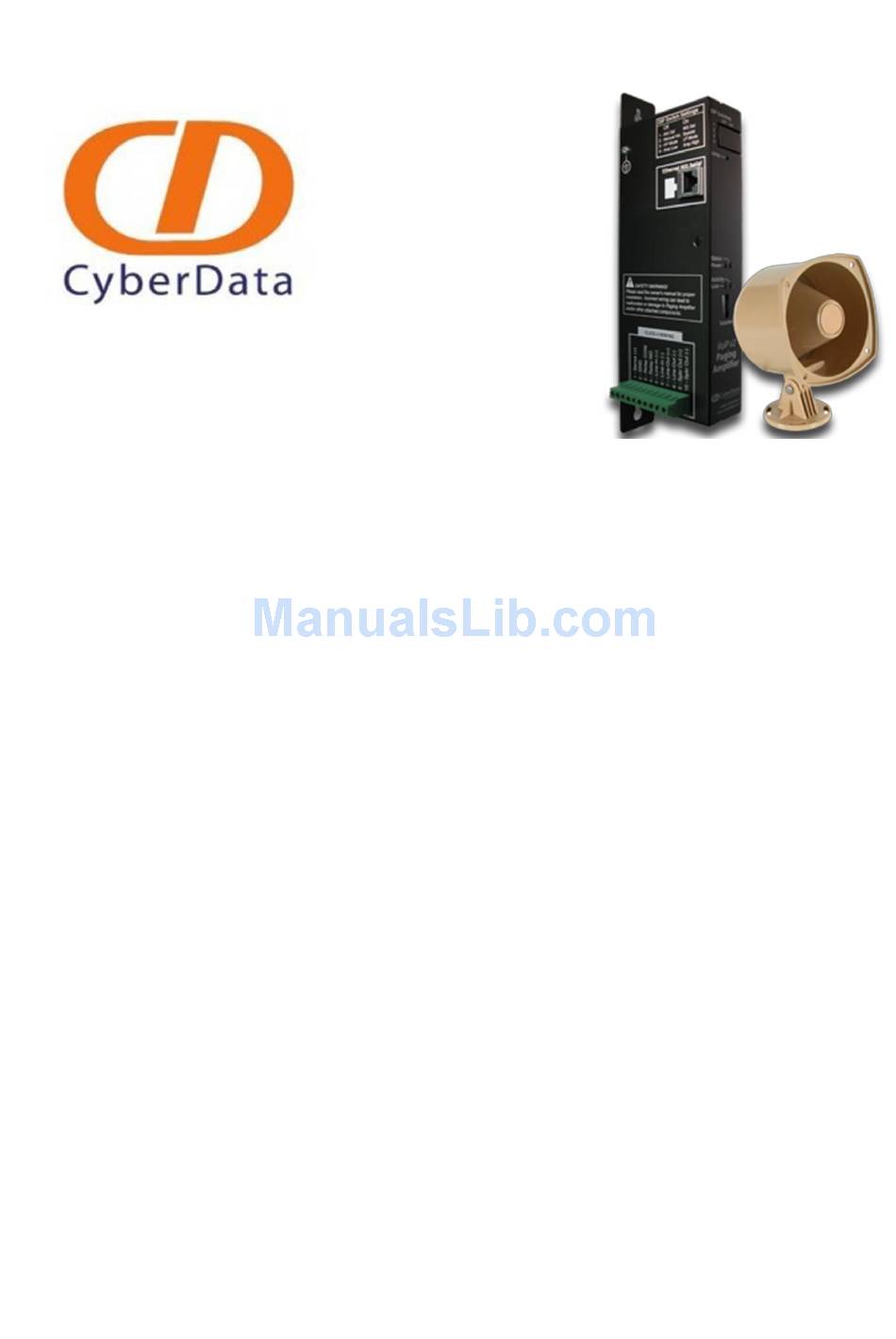

- Page 1 VoIP Paging Amplifier with Elastix Server Setup Guide...
- Page 2 1.0 Setup Diagram Figure 1-1 is a setup diagram for a single VoIP Paging Amplifier configuration. In this configuration, the VoIP Paging Amplifier acts as a standalone SIP telephony device. Figure 1-1. Setup Diagram 2.0 Host PC Environment Table 2-1. Host Server Environment Details...
-
Page 3: Setup Procedure
4.0 Setup Procedure To set up the Elastix Server for the CyberData VoIP Paging Amplifier, 1. Go to the web address of the Elastix Server Login page. The web address is determined by the customer, for this guide we have used the IP address 192.168.1.65 2. - Page 4 6. On the Add SIP Extension page (Figure 4-4), fill in the following information: • User Extension (310 in this example) • Display Name („CyberData Paging Amplifier‟ in this example) • secret („43f0j93f099y8‟ in this example) Figure 4-4. Add SIP Extension 7.
- Page 5 9. With this you have just finished creating a SIP extension that will be used by the VoIP Paging Amplifier to register with the Elastix Server. Repeat Steps 5 through 8 to similarly create another extension (different values on Step 6) to be used by the IP (SIP) Phone to register as well (extension 320 in this example).
- Page 6 Note You may also download CyberData‟s VoIP Discovery Utility program which allows you to easily find and configure the default web address of the CyberData VoIP products. CyberData‟s VoIP Discovery Utility program is available at the following web address: http://www.cyberdata.net/support/voip/discovery_utility.html 11.
- Page 7 • Authenticate ID (310 in this example) • Authenticate Password (43f0j93f099y8 in this example) • Dial out Extension (320 in this example) Note Figure 4-8 is an example of a CyberData VoIP Paging Amplifier that is configured to extension 310 Figure 4-8. SIP Config Page 13.
- Page 8 15. To test the Paging Amplifier‟s call reception feature, pick up the previously configured IP (SIP) Phone and call the Paging Amplifier‟s extension number (310 in this example). When the call is established, speak into the phone and verify that you can hear your voice through the Paging Amplifier.
