CyberData 11095 Operation Manual

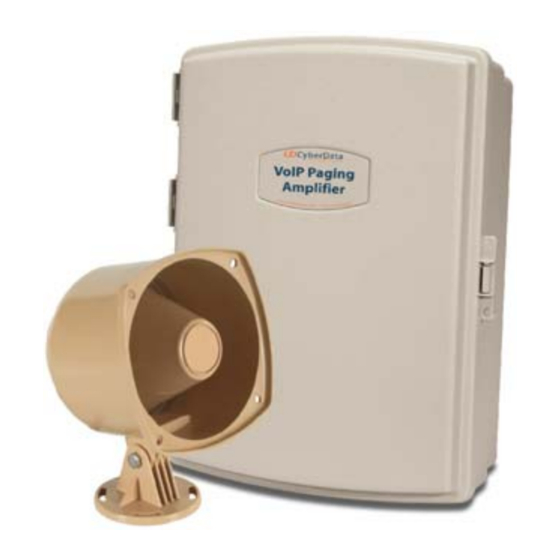

Voip v2 loudspeaker amplifier (ac-powered)
Hide thumbs Also See for 11095:
Table of Contents

Advertisement

Quick Links

Download this manual
The IP Endpoint Company
VoIP V2 Loudspeaker
Amplifier (AC-Powered)
Operations Guide
Part #011095
Document Part #930360J
for Firmware Version 6.2.0
CyberData Corporation
3 Justin Court
Monterey, CA 93940
(831) 373-2601
