SC6000 Series Smart Camera Quick Start Guide
6.2 I/O Wiring
The device receives an externally input signal or output a signal to an external device through
its 17-pin M12 male connector. This section introduces how to wire the I/O parts.
Note
Here we take Line 0 as an example to introduce input signal wiring, and take Line 4 as an
example to introduce output signal wiring.
6.2.1 Input Signal Wiring
Note
● Input signal wiring may differ by external device types.
● The voltage of VCC should not higher than that of PWR. Otherwise, the device's output
signal may have exception.

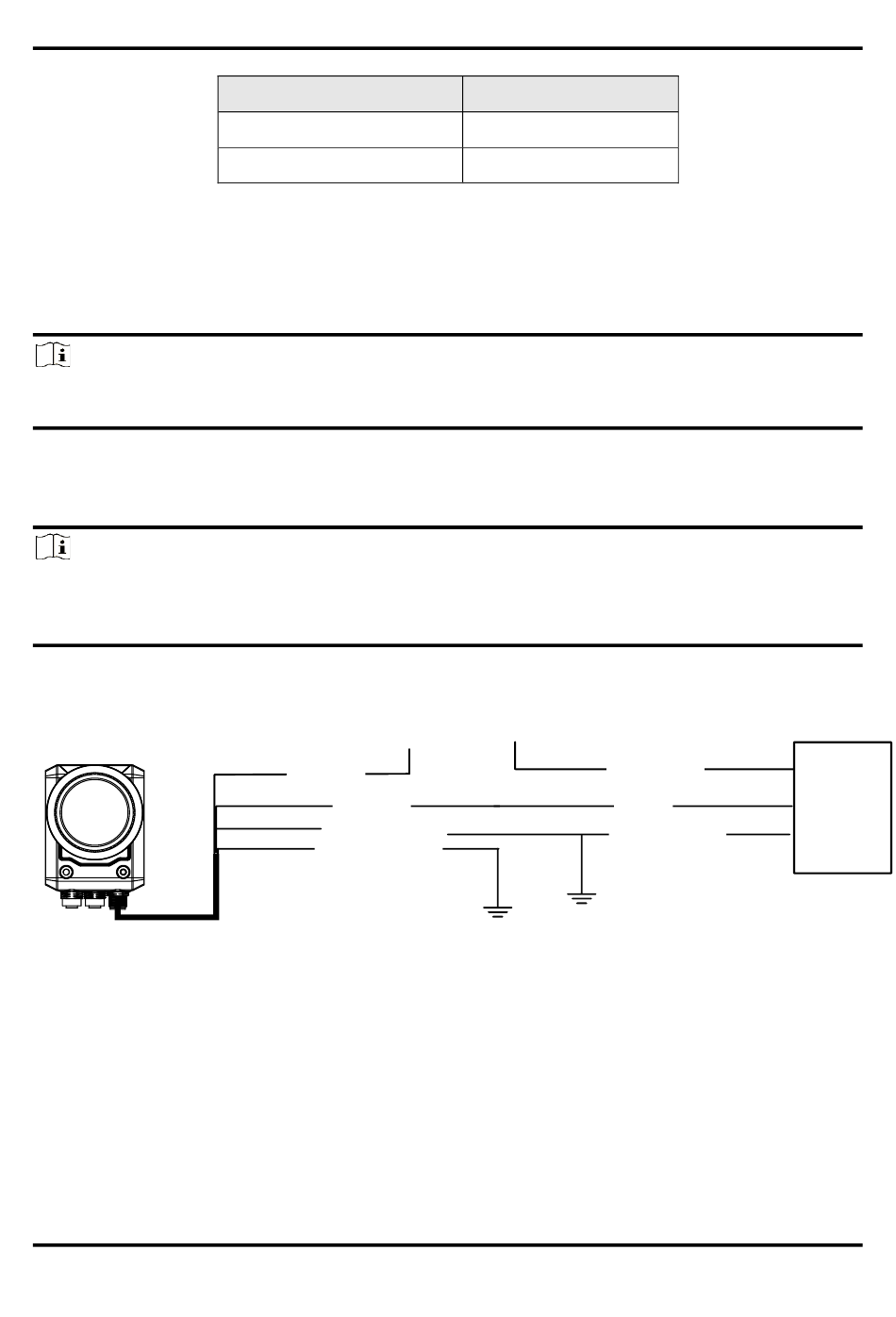

Input Signal from PNP Device
External Voltage
12 VDC
24 VDC
Device Power+
Opto-Isolated
Input
Input Signal Ground
Device Power Ground
Figure 6-8 Input Signal Connecting to PNP Device
VL
500 mV
900 mV
VCC
PWR
GND of PWR
22
PNP Device Power
Signal Line
●
PNP Power Ground
GND of VCC
PNP
Device
