SC6000 Series Smart Camera Quick Start Guide
Input Signal from NPN Device
If the VCC of NPN device is 12 VDC or 24 VDC and 1 KΩ pull-up resistor is used, its wiring is
as follows.
Output Signal to PNP Device
Output Signal to NPN Device
If the VCC of NPN device is 12 VDC or 24 VDC and 1 KΩ pull-up resistor is used, its wiring is
as follows.
Device Power+
Configurable Input/Output Signal
Configurable Input/Output Signal Ground
Device Power Ground

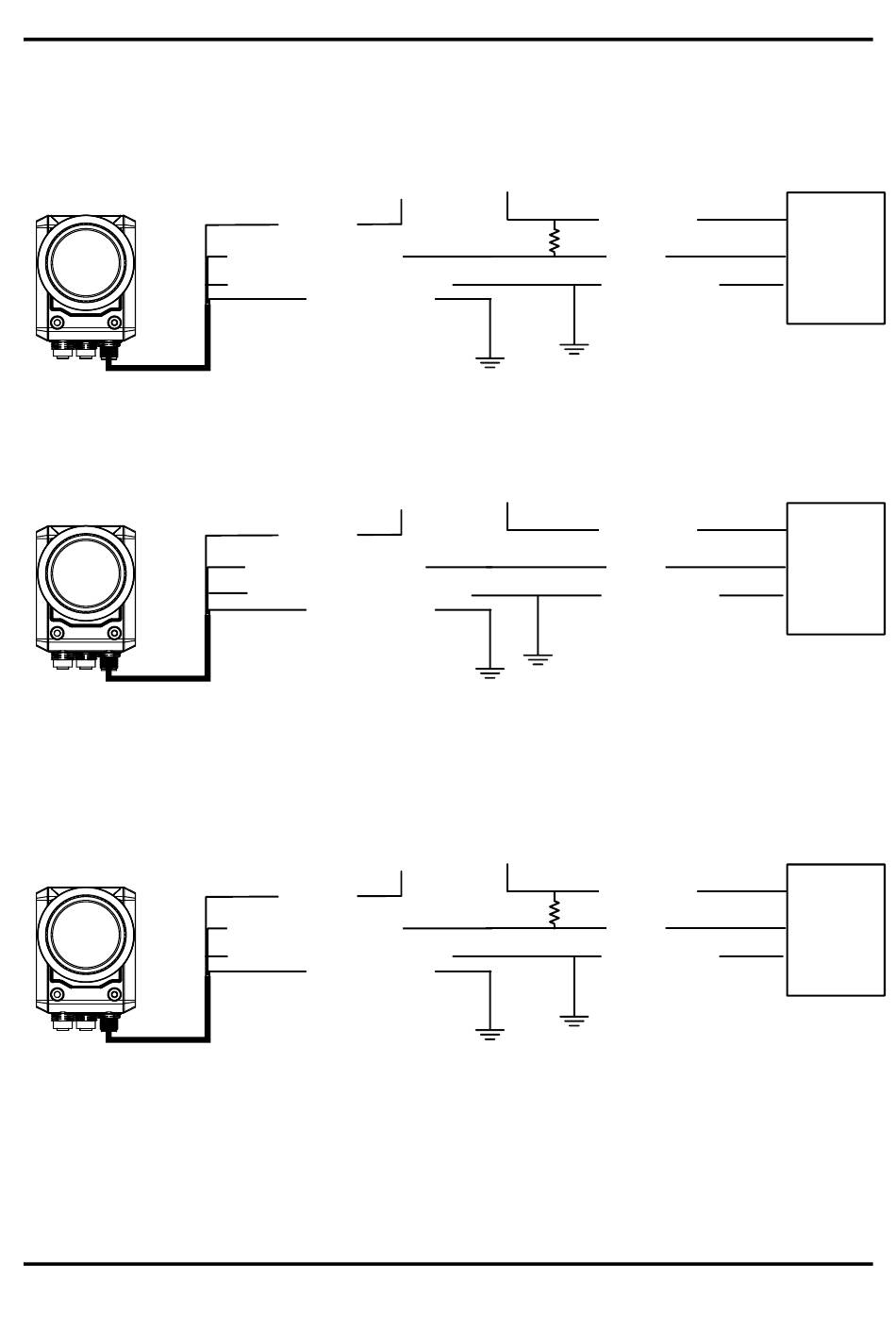

Figure 6-13 Input Signal Connecting to NPN Device
Device Power+
Configurable Input/Output Signal
fhfh
Configurable Input/Output Signal Ground
Device Power Ground
Figure 6-14 Output Signal Connecting to PNP Device
Device Power+
Configurable Input/Output Signal
Configurable Input/Output Signal Ground
Device Power Ground
Figure 6-15 Output Signal Connecting to NPN Device
VCC
PWR
●
●
GND of PWR
VCC
PWR
●
GND of PWR
VCC
PWR
●
●
GND of PWR
25
NPN Device Power
Signal Line
●
NPN Power Ground
GND of VCC
PNP Device Power
Signal Line
PNP Power Ground
GND of VCC
NPN Device Power
Signal Line
●
NPN Power Ground
GND of VCC
NPN
Device
PNP
Device
NPN
Device
