SC6000 Series Smart Camera Quick Start Guide
6.3 RS-232 Serial Port
The device supports outputting via the RS-232 serial port.
Note
Refer to the user manual of the VM software for details.
6.3.1 RS-232 Serial Port Introduction

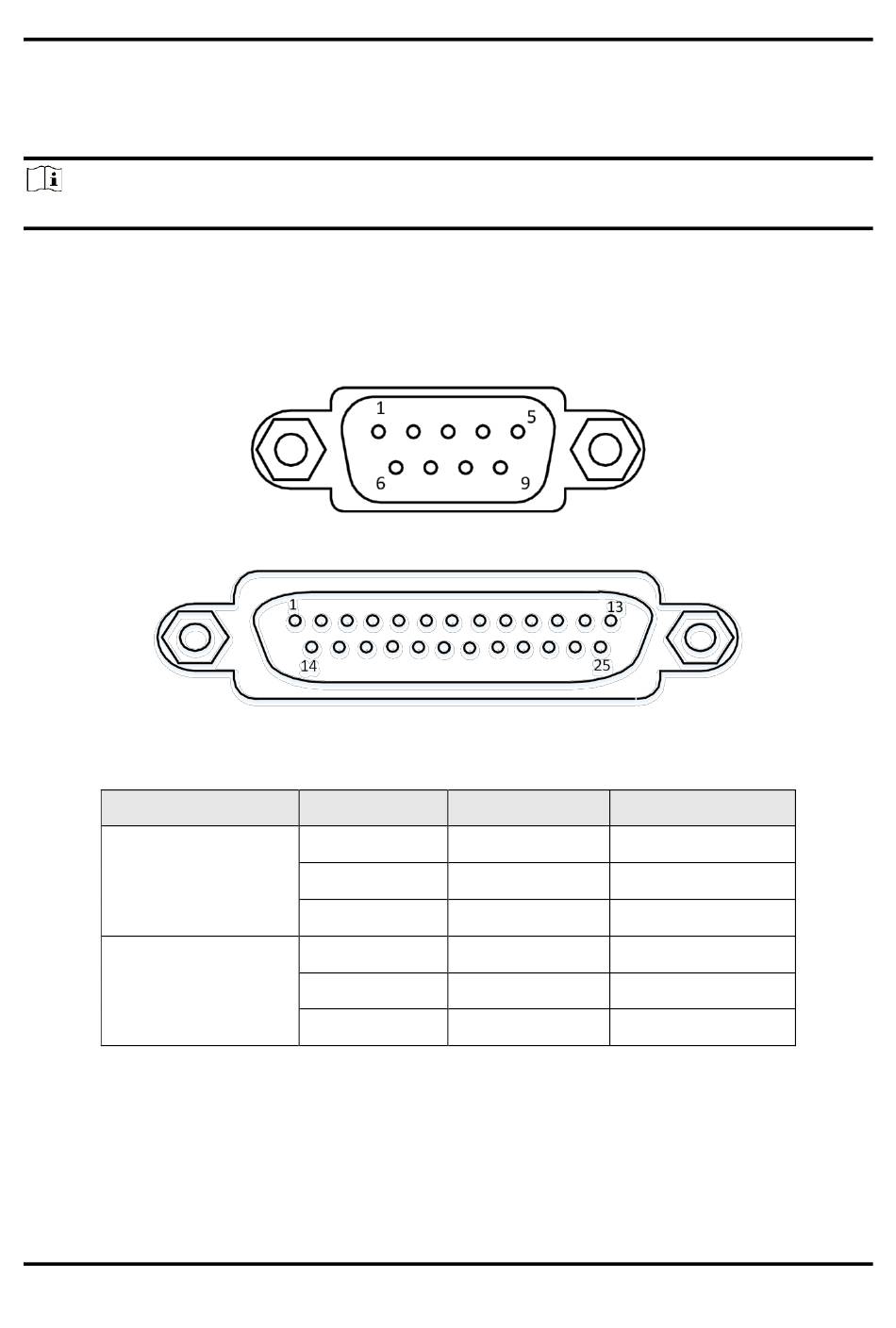

The 9-pin male connector and 25-pin male connector are commonly used serial ports, as
shown below. You can refer to the table below for the specific pin name and function.
Serial Port Type
9-Pin Connector
25-Pin Connector
Figure 6-16 9-Pin Connector
Figure 6-17 25-Pin Connector
Table 6-6 Description
Pin No.
2
RX
3
TX
5
GND
2
TX
3
RX
7
GND
26
Name
Function
Receive Data
Transmit Data
Signal Ground
Transmit Data
Receive Data
Signal Ground
