SC6000 Series Smart Camera Quick Start Guide
6.3.2 RS-232 Serial Port Wiring
You can refer to the serial port wiring below to connect the device with an external device.
PWR
Device Power+
Device TX
Device RX
Device Power Ground

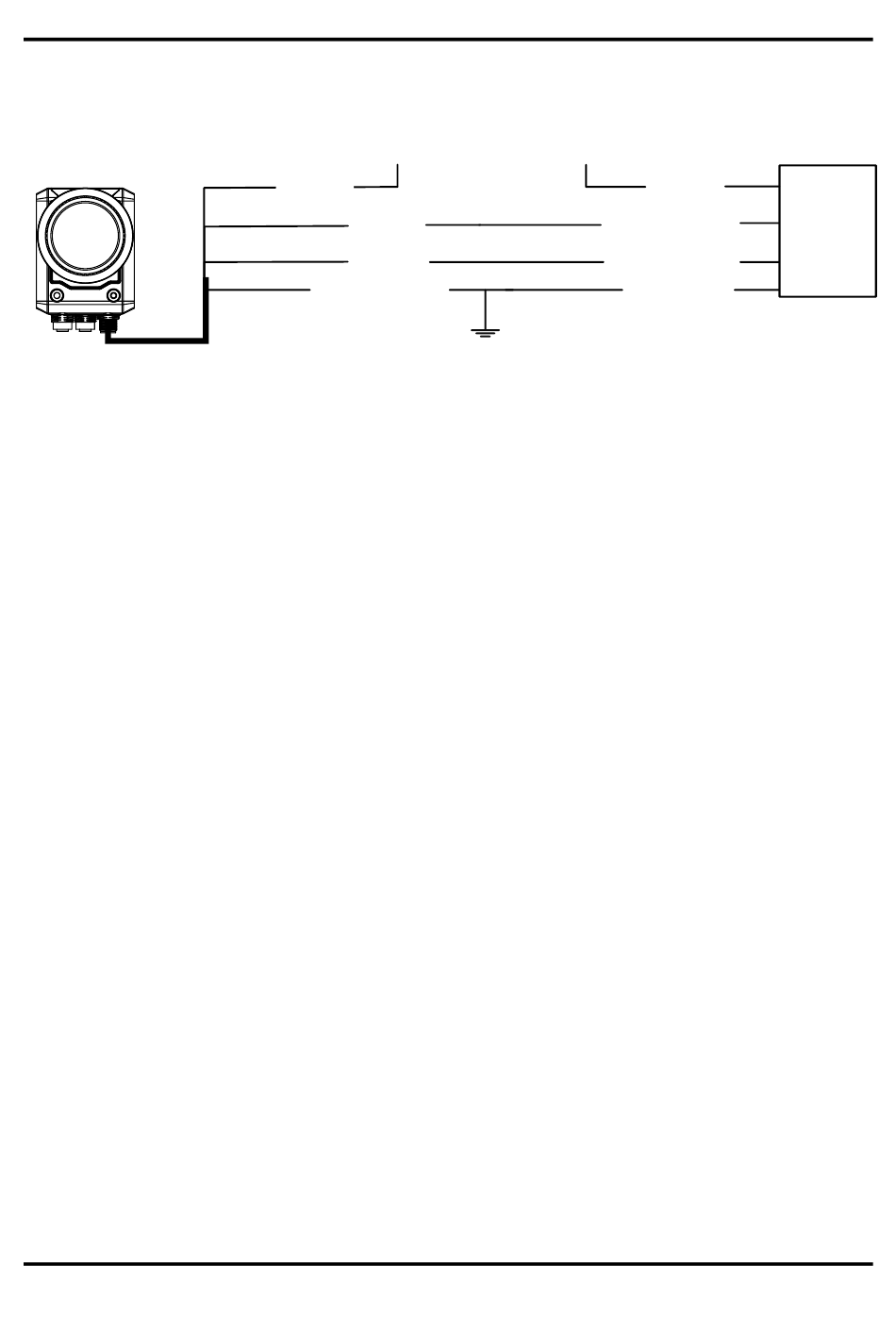

Figure 6-18 RS-232 Serial Port Wiring
27
VCC
Device Power
TX of External Device
RX of External Device
Power Ground of
●
External Device
GND
External
Device
