NPN Device as External Device
If the VCC of NPN device is 12 VDC or 24 VDC and 1 KΩ pull-up resistor is used, its wiring is
as follows.

6.2.3 Configurable Input/Output Wiring

The device's Line 2/3 can be configured to input or output signals via the VM software, and
their wiring is shown below.
Note
● Input/output signal wiring may differ by external device types.
● The voltage of VCC should not higher than that of PWR. Otherwise, the device's output
signal may have exception.
Input Signal from PNP Device
If 1 KΩ pull-down resistor is used, its wiring is as follows.
Device Power+
Opto-Isolated
Output
Output Signal Ground
Device Power Ground

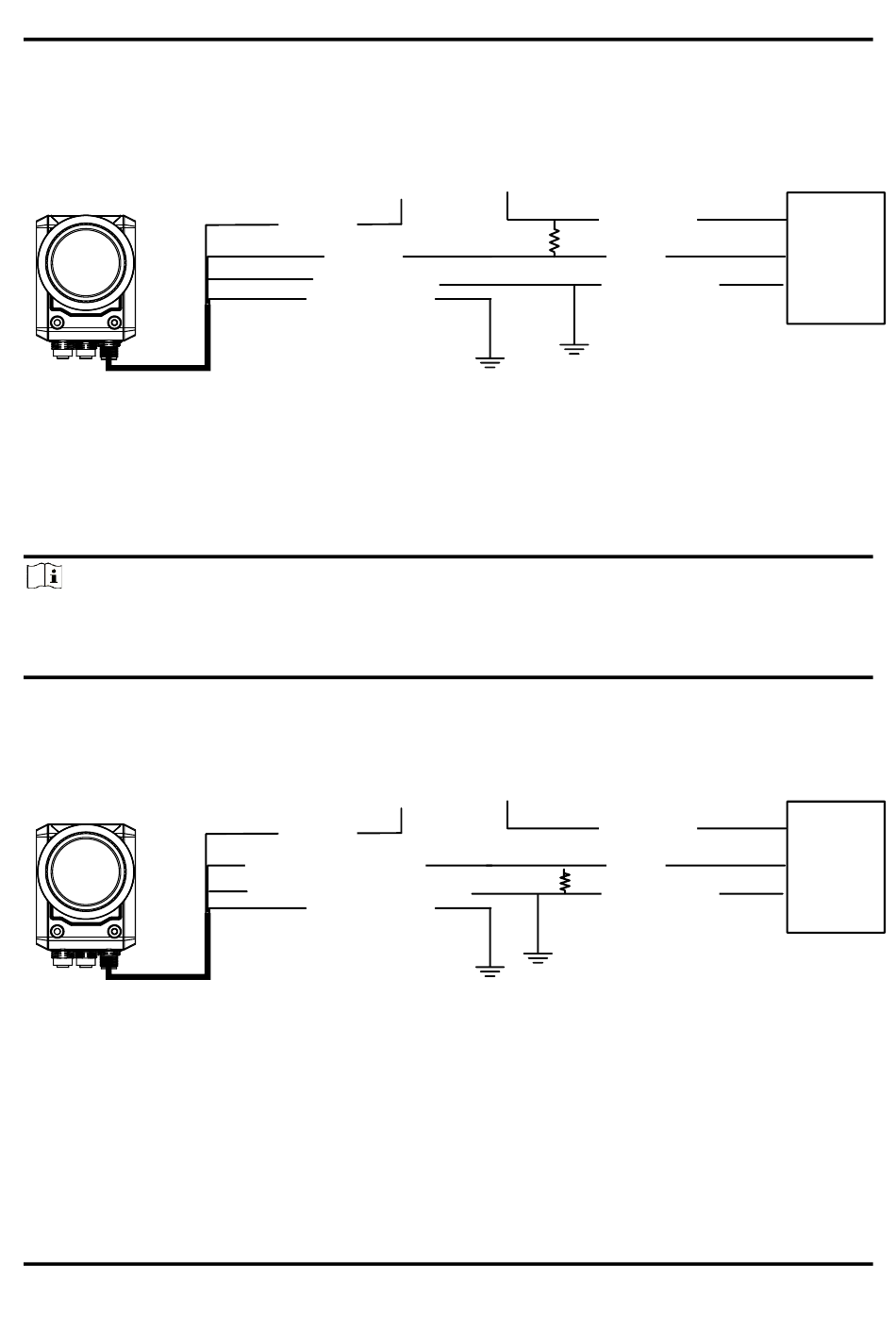

Figure 6-11 Output Signal Connecting to NPN Device
Device Power+
Configurable Input/Output Signal
fhfh
Configurable Input/Output Signal Ground
Device Power Ground
Figure 6-12 Input Signal Connecting to PNP Device
VCC
PWR
●
●
GND of PWR
VCC
PWR
●
GND of PWR
24
NPN Device Power
Signal Line
●
NPN Power Ground
GND of VCC
PNP Device Power
●
Signal Line
● PNP Power Ground
GND of VCC
NPN
Device
PNP
Device
