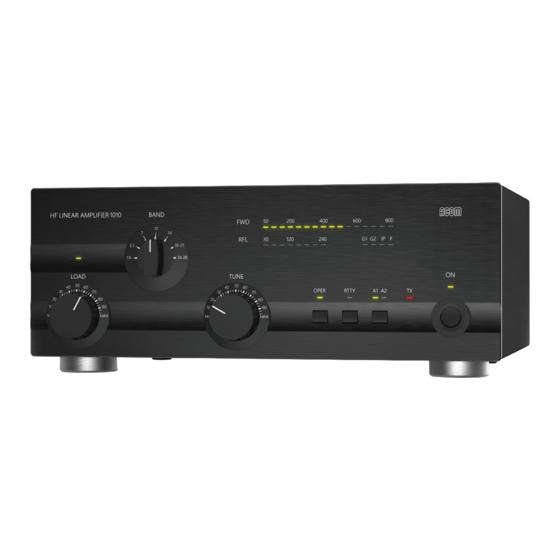

Acom 1010 User Manual
Hf linear amplifier
Hide thumbs
Also See for 1010:
- User manual ,
- Operating manual (20 pages) ,
- Schematic diagrams (15 pages)
Related Manuals for Acom 1010
Summary of Contents for Acom 1010
- Page 1 OU T S TANDING HF P OWER PRODUC T S ACOM 1010 HF Linear Amplifier User's Manual Installation, Operation and Maintenance August 2020...
- Page 2 User's Manual | ACOM 1010 | HF Linear Amplifier This manual is for electronic distribution mainly. If you have it on paper and you no longer need it, please, recycle it! The latest versions of our User's Manuals are available at www.acom-bg.com...
-
Page 3: About Documentation
ACOM products and services. Further, this User's Manual is provided AS IS and ACOM shall not be liable for possible errors contained herein. - Page 4 Offenders will be held liable for infringement of any intellectual property of ACOM Ltd. and all damages which may rise as a result. Published by ACOM Ltd. Bulgaria | Bozhurishte 2227 Sofia-Bozhurishte Economic Zone | 6 Valeri Petrov Str.
-
Page 5: Table Of Contents
User's Manual | ACOM 1010 | HF Linear Amplifier Contents ABOUT DOCUMENTATION ..........................3 GENERAL INFORMATION ........................... 7 1.1. Introduction and Description ......................7 1.2. Owner Assistance ..........................7 1.3. Equipment Supplied ........................7 1.4. Features ............................8 1.5. Safety Considerations, Explicit Definitions ..................9 INSTALLATION ............................ - Page 6 User's Manual | ACOM 1010 | HF Linear Amplifier NOTES ................................30 Figures Figure 2-1 Connections ........................... 12 Figure 3-1 ACOM 1010 Display and Control ....................15 Figure 4-1 Using TRI tuning aid ........................20 Figure 5-1 ACOM 1010 Simplified Schematic Diagram .................. 26 Tables Table 2-1 ACOM 1010 Individual Data ......................
-
Page 7: General Information
Congratulations on purchasing one of the finest HF amplifiers in the world today. ACOM is pleased that you have chosen one of our products, and we will endeavor to provide you with the information and support you need to enjoy your purchase for many years. -
Page 8: Features
User's Manual | ACOM 1010 | HF Linear Amplifier 1.4. Features Easy operation. The plate-load True Resistance Indicator (TRI) is an ACOM innovation that provides • quick and precise tuning, typically in less than 10 seconds. The auto-operate function will return the amplifier to the OPERATE mode automatically after each protection trip, saving time and avoiding manual switching. -
Page 9: Safety Considerations, Explicit Definitions
1.5. Safety Considerations, Explicit Definitions The ACOM 1010 HF Linear Amplifier is a Safety Class I unit. The grounding lead (yellow with 2 green stripes) of the power cable and the ground stud on the rear panel of the amplifier (marked GND) must be connected to the station’s grounding system for safe operation. - Page 10 User's Manual | ACOM 1010 | HF Linear Amplifier PRECAUTIONS: D A N G E R ! H I G H V O L T A G E ! The amplifier works with high voltages up to 3000V, which are LETHAL! For your safety, pull the amplifier power plug out of the mains wall outlet and WAIT AT LEAST 30 minutes EACH TIME BEFORE you remove the cover of the amplifier.
-
Page 11: Installation
Note! Before you install your amplifier, thoroughly read this manual. First, carefully inspect the cardboard carton and its contents for physical damage. ACOM ships amplifiers in highly protected containers, but it cannot assure that mistreatment by shippers will not occur. -
Page 12: Amplifier Location Selection
User's Manual | ACOM 1010 | HF Linear Amplifier 2.3. Amplifier Location Selection Position the amplifier near the place where it will be used. You will need an easy access to the command knobs and indicator's area, as well as to the rear panel cabling. - Page 13 User's Manual | ACOM 1010 | HF Linear Amplifier Connect the station's grounding system to the wing-nut ground stud of the amplifier (on the rear panel, marked GND, see Figure 2-1 Connections Connect a suitable coaxial cable between the transceiver output to the amplifier (rear panel) RF INPUT SO-239 connector, using PL-259 connector.
- Page 14 User's Manual | ACOM 1010 | HF Linear Amplifier W A R N I N G Before connecting the amplifier to your line (mains) supply, be sure that the line (mains) supply is correctly wired and is capable of providing the required current, i.e., up to 5A from 240V and 10A from 120V.
-
Page 15: Power On, Controls And Indicators
User's Manual | ACOM 1010 | HF Linear Amplifier 3. POWER ON, CONTROLS AND INDICATORS D A N G E R Do not turn the amplifier on for at least 2 hours after unpacking it in the room where it will be used. - Page 16 User's Manual | ACOM 1010 | HF Linear Amplifier The lower LED bar-graph will indicate reflected power up to 240W. The scale resolution is 30W. The OPER button alternatively switches between the operate and standby modes once the amplifier has completed its 150-second warm-up period (see Section 4.2 Changing Operate and Standby Modes...
-
Page 17: Operation
User's Manual | ACOM 1010 | HF Linear Amplifier 4. OPERATION Operation of the amplifier is simplified through ACOM's innovative TRI tuning aid, Auto-Operate function, and automatic protection systems. To make full use of the amplifier's potential and to configure it to local conditions, the following information should be read carefully. -
Page 18: Rtty Mode
User's Manual | ACOM 1010 | HF Linear Amplifier 4.3. RTTY Mode Select the RTTY mode to operate continuous-duty modes such as RTTY, SSTV or other data modes. The LED indicator above the RTTY button illuminates and the amplifier operating parameters are changed to reduce tube dissipation. - Page 19 User's Manual | ACOM 1010 | HF Linear Amplifier The amplifier can operate safely as long as the REFLECTED POWER is LESS THAN 250W. Matching is assured for loads presenting a VSWR of up to 3:1. Nevertheless, for some loads and bands, matching is possible at even higher VSWR levels, but the drive power must be reduced to prevent the REFLECTED POWER from exceeding 250W.
-
Page 20: Figure 4-1 Using Tri Tuning Aid
User's Manual | ACOM 1010 | HF Linear Amplifier Band, MHz Tune Knob Dial Load Knob Dial 1.800 – 2.000 47 - 71 54 - 32 34 - 56 51 - 33 3.500 – 4.000 7.000 - 7.300 32 - 39... -
Page 21: The Auto-Protection System
User's Manual | ACOM 1010 | HF Linear Amplifier The TRI indicator will not illuminate until at least 20W of forward power (output) is achieved. In the event successful matching cannot be accomplished, check the BAND switch position and antenna selection. Then check the antenna VSWR at the same drive frequency. - Page 22 User's Manual | ACOM 1010 | HF Linear Amplifier Fault information normally remains on the display for several seconds while the amplifier is in the standby mode. The auto-operate function will attempt to return the amplifier to the operate mode automatically. If the protection trips repeatedly, the user must attend to the cause of the trip, which is typically too much drive or antenna mismatch.
-
Page 23: Maintenance
User's Manual | ACOM 1010 | HF Linear Amplifier 5. MAINTENANCE If no indicator glows upon switching the amplifier ON, the main fuse(s) may have blown (see Section Fuse Replacement 5.1. Cleaning W A R N I N G Do not use solvents for cleaning as they may be dangerous to you and damage amplifier surfaces and plastic components. -
Page 24: Tube Replacement
MAINS PCB: 0.8A, 250V, SLOW BLOW (Time Lag), 5x20mm; BUSSMANN type S504-800mA. • These latter fuses must not be replaced by the user. Replacing these internal fuses is potentially dangerous and must be done only by a trained service technician. Contact your ACOM dealer for assistance (see Section 1.2 Owner Assistance 5.3. - Page 25 N O T E Забележка! Note! Detailed electrical schematic diagrams are available from ACOM or from your dealer on request. August 2020 S e c t i o n MAINTENANCE | Page 25 of 32...
-
Page 26: Figure 5-1 Acom 1010 Simplified Schematic Diagram
User's Manual | ACOM 1010 | HF Linear Amplifier Figure 5-1 ACOM 1010 Simplified Schematic Diagram Page 26 of 32 | S e c t i o n MAINTENANCE August 2020... -
Page 27: Service Functions
User's Manual | ACOM 1010 | HF Linear Amplifier 5.5. Service Functions By pressing the OPER and RTTY buttons simultaneously, the upper LED bar-graph is switched to the service mode, which is indicated by both red bar-graph lights and the yellow G1 light illuminating. Pressing the OPER and RTTY buttons together again will select additional service measurement functions. -
Page 28: Specifications
User's Manual | ACOM 1010 | HF Linear Amplifier 6. SPECIFICATIONS 6.1. Parameters Frequency Coverage: All amateur bands in the 1.8-29.7MHz frequency range. Extensions and/or changes on request; Power Output: 700W PEP or 500W continuous carrier; Intermodulation Distortion: Better than 35dB below rated output;... -
Page 29: Storage And Shipment
User's Manual | ACOM 1010 | HF Linear Amplifier Protections: Cover interlock for operator’s safety; • Inrush power-on current limited to the nominal consumption; • Control grid, screen grid, and plate currents; • T/R sequencing; • Antenna relay contacts, including RF power induced in antenna from another nearby •... -
Page 30: Notes
User's Manual | ACOM 1010 | HF Linear Amplifier NOTES …………………………………………………………………………………………………………………..……………………………………………………………………………………………………………….. …………………………………………………………………………………………………………………..……………………………………………………………………………………………………………….. …………………………………………………………………………………………………………………..……………………………………………………………………………………………………………….. …………………………………………………………………………………………………………………..……………………………………………………………………………………………………………….. …………………………………………………………………………………………………………………..……………………………………………………………………………………………………………….. …………………………………………………………………………………………………………………..……………………………………………………………………………………………………………….. …………………………………………………………………………………………………………………..……………………………………………………………………………………………………………….. …………………………………………………………………………………………………………………..……………………………………………………………………………………………………………….. …………………………………………………………………………………………………………………..……………………………………………………………………………………………………………….. …………………………………………………………………………………………………………………..……………………………………………………………………………………………………………….. …………………………………………………………………………………………………………………..……………………………………………………………………………………………………………….. …………………………………………………………………………………………………………………..……………………………………………………………………………………………………………….. …………………………………………………………………………………………………………………..……………………………………………………………………………………………………………….. …………………………………………………………………………………………………………………..……………………………………………………………………………………………………………….. …………………………………………………………………………………………………………………..……………………………………………………………………………………………………………….. …………………………………………………………………………………………………………………..……………………………………………………………………………………………………………….. …………………………………………………………………………………………………………………..……………………………………………………………………………………………………………….. …………………………………………………………………………………………………………………..……………………………………………………………………………………………………………….. …………………………………………………………………………………………………………………..……………………………………………………………………………………………………………….. …………………………………………………………………………………………………………………..……………………………………………………………………………………………………………….. …………………………………………………………………………………………………………………..……………………………………………………………………………………………………………….. …………………………………………………………………………………………………………………..……………………………………………………………………………………………………………….. Page 30 of 32 | S e c t i o n NOTES... - Page 31 User's Manual | ACOM 1010 | HF Linear Amplifier This manual is for electronic distribution mainly. If you have it on paper and you no longer need it, please, recycle it! The latest versions of our User's Manuals are available at www.acom-bg.com...
- Page 32 о support@acom-bg.com www.acom-bg.com ACOM and the ACOM logo are registered trademarks of ACOM Ltd. in many countries, including the EU and United States. I The used images are illustrative only. Subject to change without notice. I Printed in Bulgaria. All rights reserved. I Design and content by ACOM Ltd. I August 2020.
