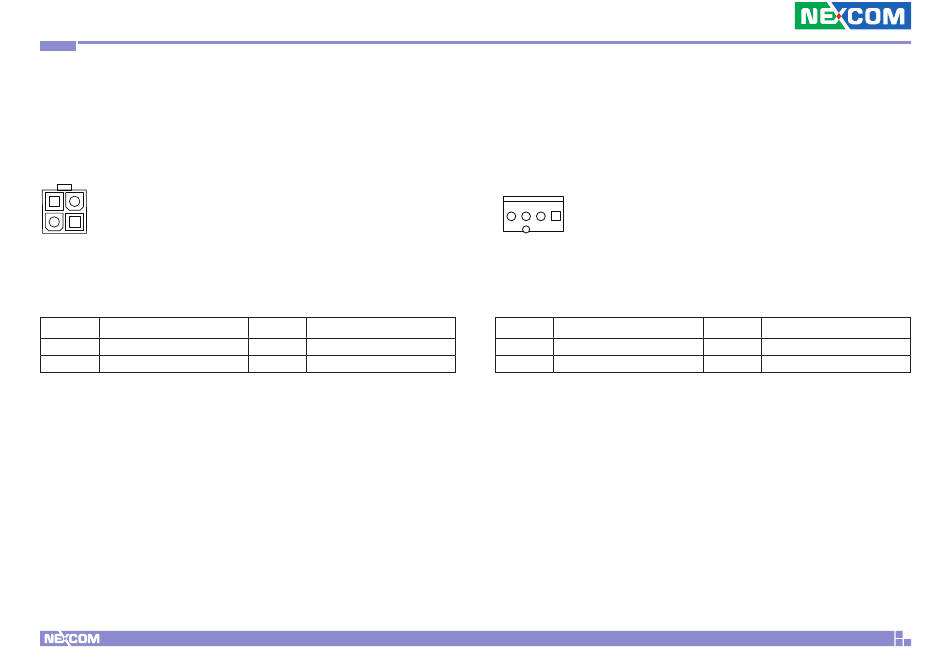

Chapter 2: Jumpers and Connectors
ATX +12V Power Connector
Connector type: ATX Power Connector, 2x2 Male
Connector location: CON1
3
4
2
1
Pin
Definition
1
GND
3
+12VSUS
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
GND
4
+12VSUS
FAN Connector
Connector type: WtoB, 1x4-pin header, 2.54mm pitch
Connector location: CPU_FAN
4
1
Pin
Definition
1
GND
3
CPU FAN SPEED DETECT
17
Pin
Definition
2
+12V
4
CPU FAN SPEED CONTROL
Neu-X304 Series User Manual
