Chapter 2: Jumpers and Connectors

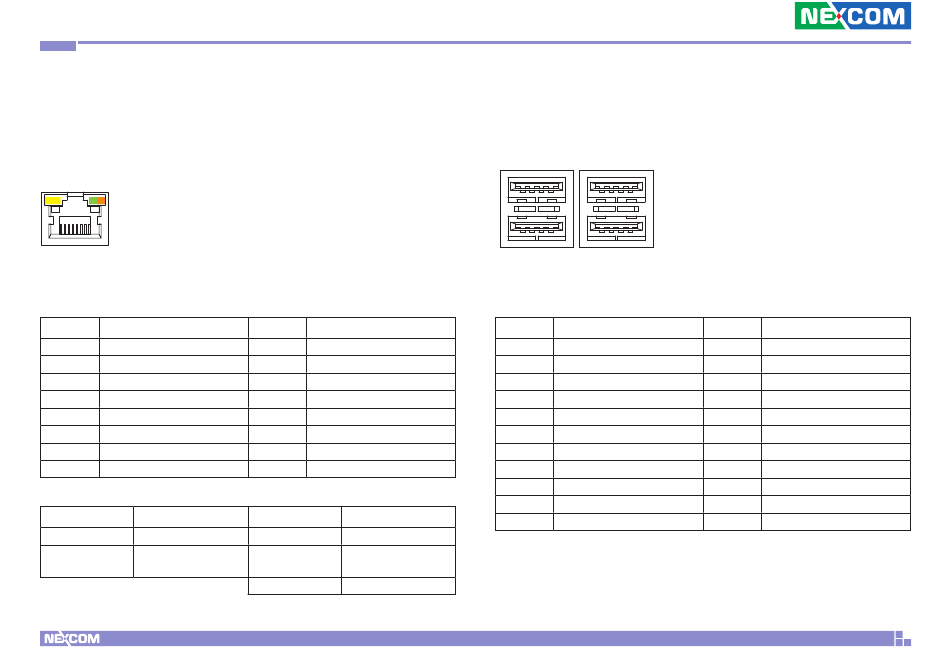

LAN Port (i226-V)

Connector type: RJ45 LAN Port W/LED
Connector location: LAN2
ACT LINK
1
Pin Definition
1 LAN1_MDI0P
3 LAN1_MDI1P
5 TCT
7 LAN1_MDI2P
9 LAN1_MDI3P
11 LAN1LED1G#
13 LAN1LEDACTN
MH1 CGND
LED Indicators
Act Status
Flashing Yellow Data activity
Off No activity
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 LAN1_MDI0N
4 LAN1_MDI1N
6 TCTG
8 LAN1_MDI2N
10 LAN1_MDI3N
12 LAN1LED100#
14 LAN1ACTPW
MH2 CGND
Link Status
Steady Green
1G/2.5G network link
100Mbps network link
Steady Orange
or 10Mbps no activity
Off
10Mbps or no link

USB Ports (Neu-X304-Q)

Connector type: USB 3.2 ports (Stacked Type)
Connector location: USB3_12P and USB3_45P
Pin Definition
1 +5V
3 USB2_3P
5 USB3_RX3N
7 GND
9 USB3_TX3P
11 USB2_4N
13 GND
15 USB3_RX4P
17 USB3_TX4N
MH1 CGND
MH3 CGND
14
1
Pin Definition
2 USB2_3N
4 GND
6 USB3_RX3P
8 USB3_TX3N
10 +5V
12 USB2_4P
14 USB3_RX4N
16 GND
18 USB3_TX4P
MH2 CGND
MH4 CGND
