Chapter 2: Jumpers and Connectors

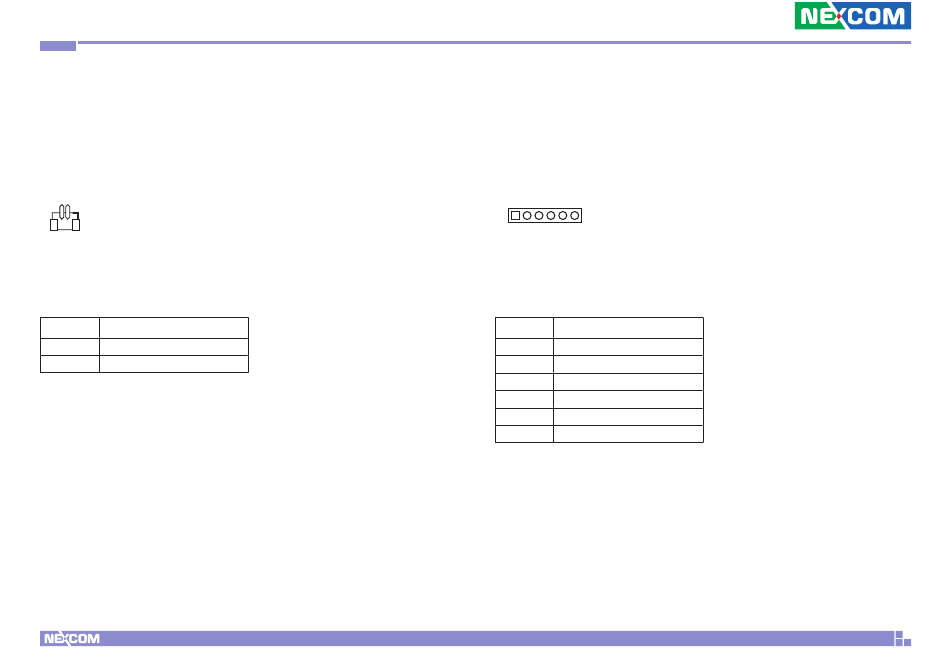

System Power Button Connector

Connector type: WtoB,1x2-pin header, 1.0mm pitch
Connector location: PWR_BTN
2 1
Pin Definition
1 GND
2 PWRBTN#
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.

System Reset Button, HDD LED, and Power LED

Connector type: 1x6-pin header, 2.0mm pitch
Connector location: RESET_LED
1 6
Pin Definition
1 GND
2 RESET#
3 HDD_LED+
4 HDD_LED-
5 PWR_LED+
6 PWR_LED-
