Chapter 4: BIOS Setup

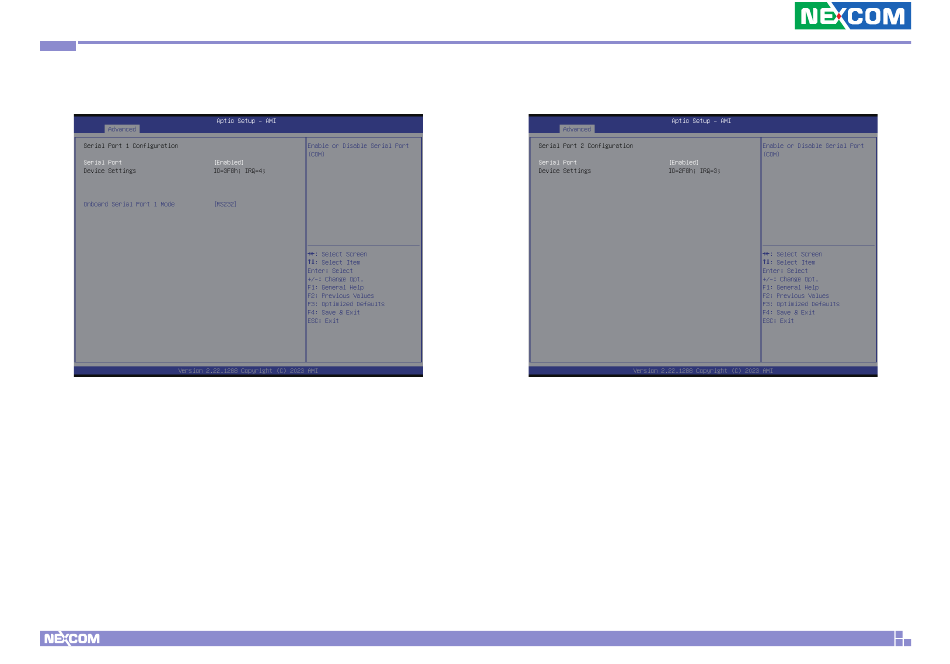

Serial Port 1 Configuration
Serial Port
Enables or disables serial port (COM)
Onboard Serial Port 1 Mode
Select a mode for serial port 1. When select RS422/485 mode, the feature
of terminal resistor will be available for configuration.
Terminal Resistor
Enable or disable built-in termination resistor and bias resistor. TX enable
low active.
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.
Serial Port 2 Configuration
Serial Port
Enables or disables serial port (COM)
47
Neu-X304 Series User Manual
