Chapter 2: Jumpers and Connectors

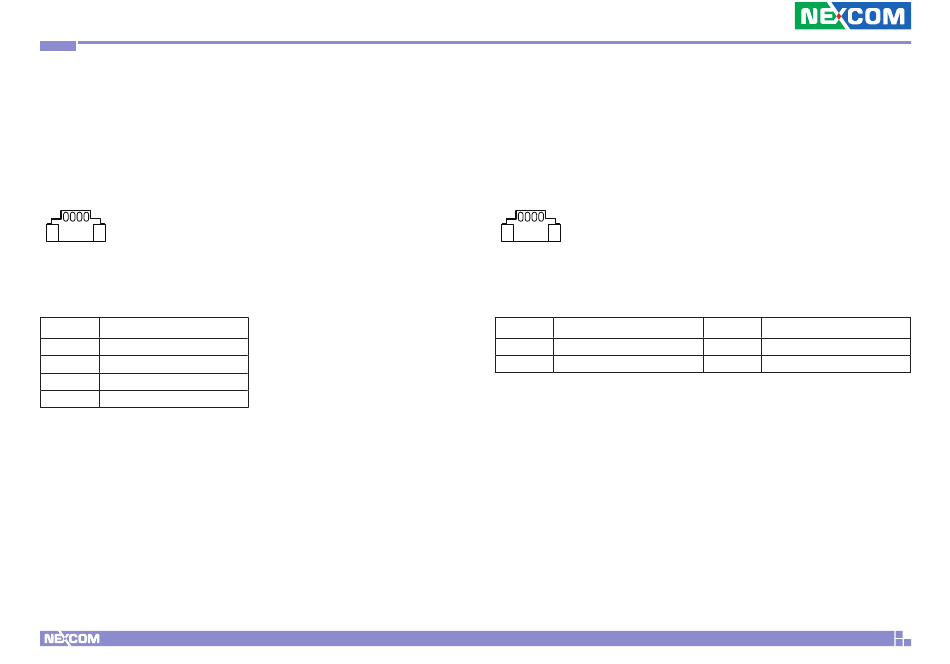

Speaker Connector
Connector type: WtoB, 1x4-pin header, 1.25mm
Connector location: SPK
1
4
Pin
Definition
1
L_OUT+
2
L_OUT-
3
R_OUT+
4
R_OUT-
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.
FAN Connector
Connector type: WtoB, 1x4-pin header, 1.25mm pitch
Connector location: SYS_FAN
1
4
Pin
Definition
1
GND
3
SYS FAN SPEED DETECT
30
Pin
Definition
2
+12V
4
SYS FAN SPEED CONTROL
Neu-X304 Series User Manual
