Installing a Wi-Fi Module (M.2 Key E)

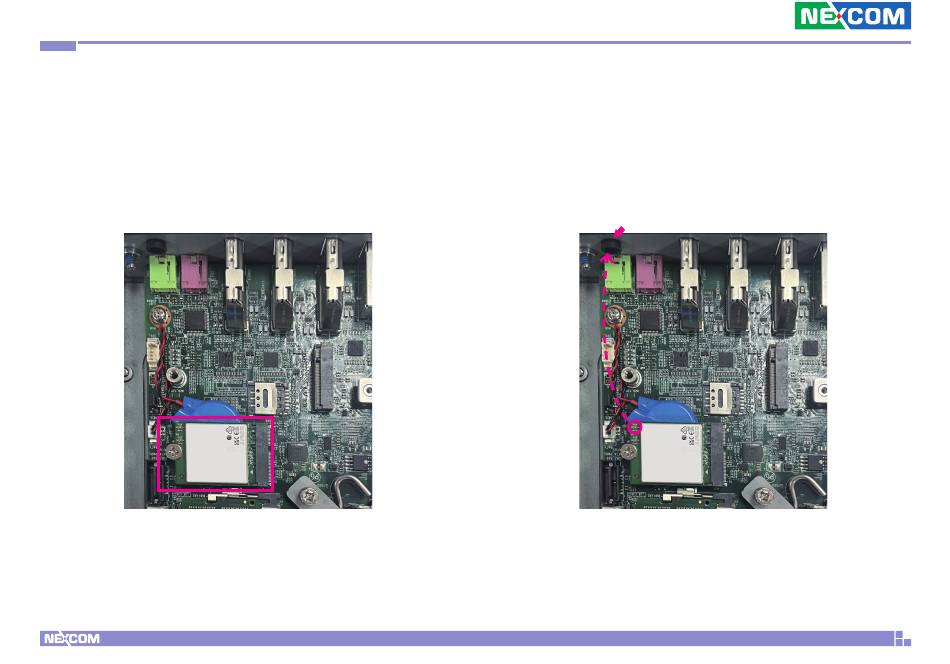

1. With the top cover removed, insert the Wi-Fi module into the slot at
a 45-degree angle until the gold-plated connector on the edge of the
module completely disappears inside the slot. Push the module down
and tighten a screw into the mounting hole on the module to secure it.
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.
2. Attach the RF cable onto the Wi-Fi module and remove the antenna
hole cover on the rear panel. Then insert the antenna jack end of the
cable through the antenna hole.
Antenna hole
