Chapter 2: Jumpers and Connectors

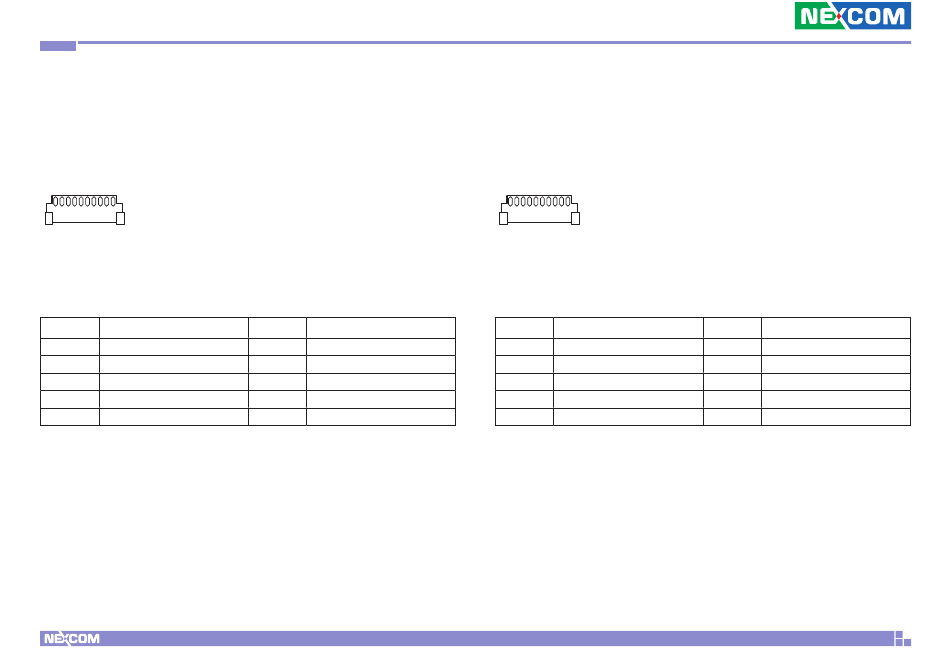

Debug Port/LPC Bus Connector
Connector type: WtoB, 1x10-pin header, 1.0mm pitch
Connector location: DEBUG
1
10
Pin
Definition
1
GND
3
ESPI_CLK
5
ESPI_IO3
7
ESPI_IO1
9
ESPI_RST#
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
PLTRST#
4
ESPI_CS#
6
ESPI_IO2
8
ESPI_IO0
10
3.3V
GPIO Connectors
Connector type: WtoB, 1x10-pin header, 1.0mm pitch
Connector location: GPIO
1
10
Pin
Definition
1
+5V
3
GPO0
5
GPO2
7
GPI0
9
GPI2
18
Pin
Definition
2
GND
4
GPO1
6
GPO3
8
GPI1
10
GPI3
Neu-X304 Series User Manual
