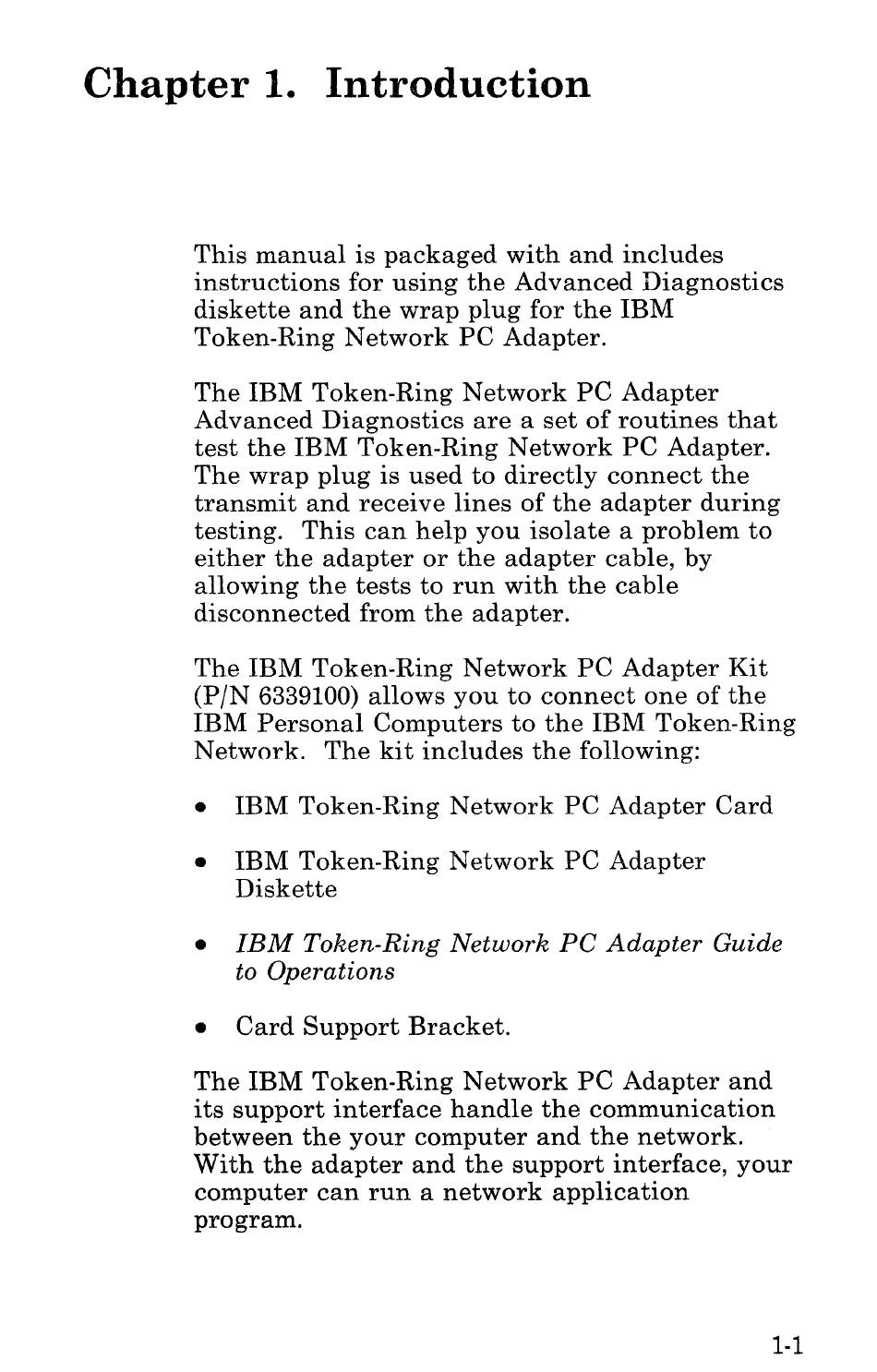

Chapter 1. Introduction
This manual is packaged with and includes
instructions for using the Advanced Diagnostics
diskette and the wrap plug for the IBM
Token-Ring Network PC Adapter.
The IBM Token-Ring Network PC Adapter
Advanced Diagnostics are a set of routines that
test the IBM Token-Ring Network PC Adapter.
The wrap plug is used to directly connect the
transmit and receive lines of the adapter during
testing. This can help you isolate a problem to
either the adapter or the adapter cable, by
allowing the tests to run with the cable
disconnected from the adapter.
The IBM Token-Ring Network PC Adapter Kit
(PIN 6339100) allows you to connect one of the
IBM Personal Computers to the IBM Token-Ring
Network. The kit includes the following:
• IBM Token-Ring Network PC Adapter Card
• IBM Token-Ring Network PC Adapter
Diskette
• IBM Token-Ring Network PC Adapter Guide
to Operations
• Card Support Bracket.
The IBM Token-Ring Network PC Adapter and
its support interface handle the communication
between the your computer and the network.
With the adapter and the support interface, your
computer can run a network application
program.
1-1
