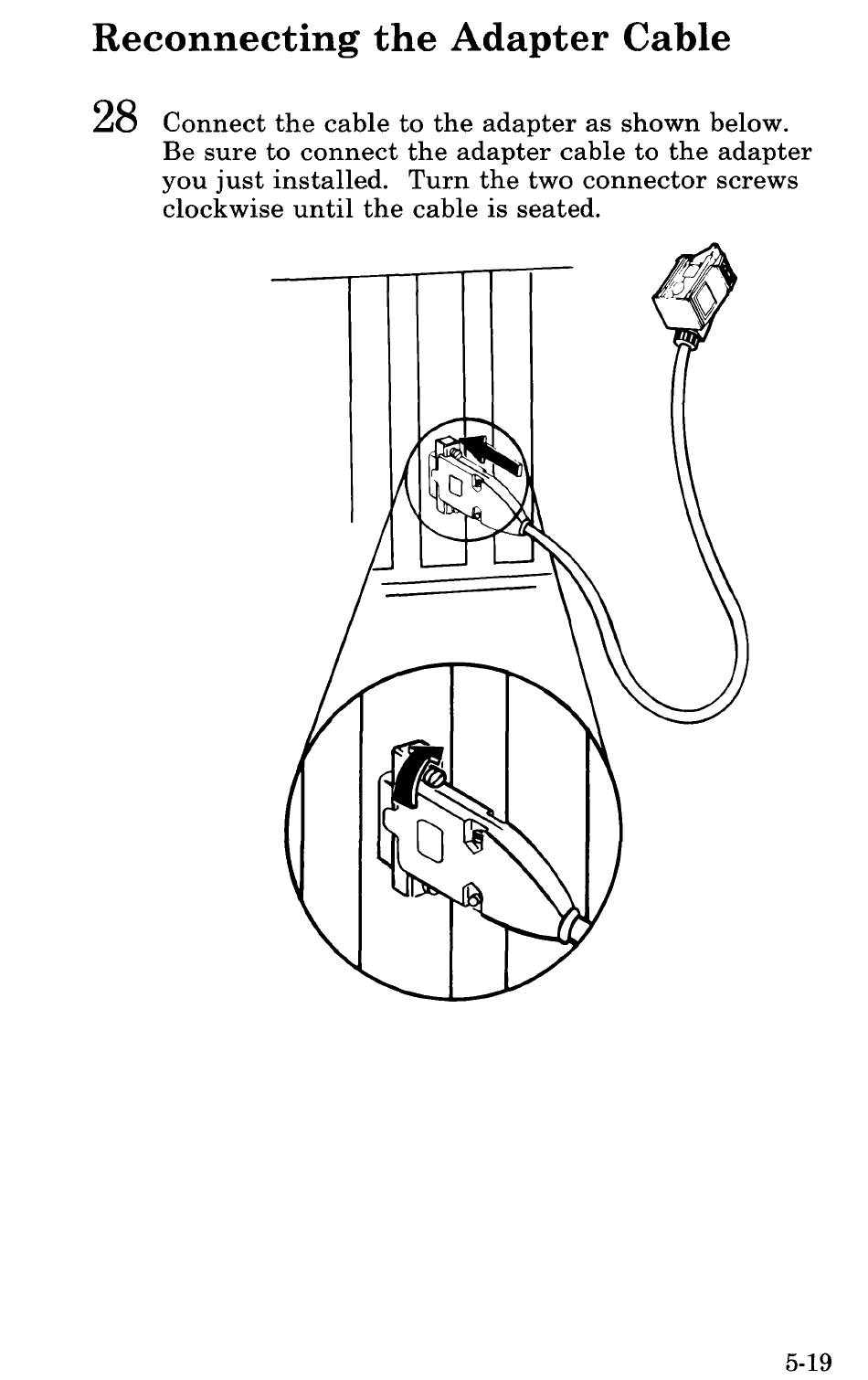

Reconnecting the Adapter Cable
28
Connect the cable to the adapter as shown below.
Be sure to connect the adapter cable to the adapter
you just installed. Turn the two connector screws
clockwise until the cable is seated.
5-19
