Table Of Contents - IBM Token-Ring Network PC Adapter Hardware Maintenance And Service

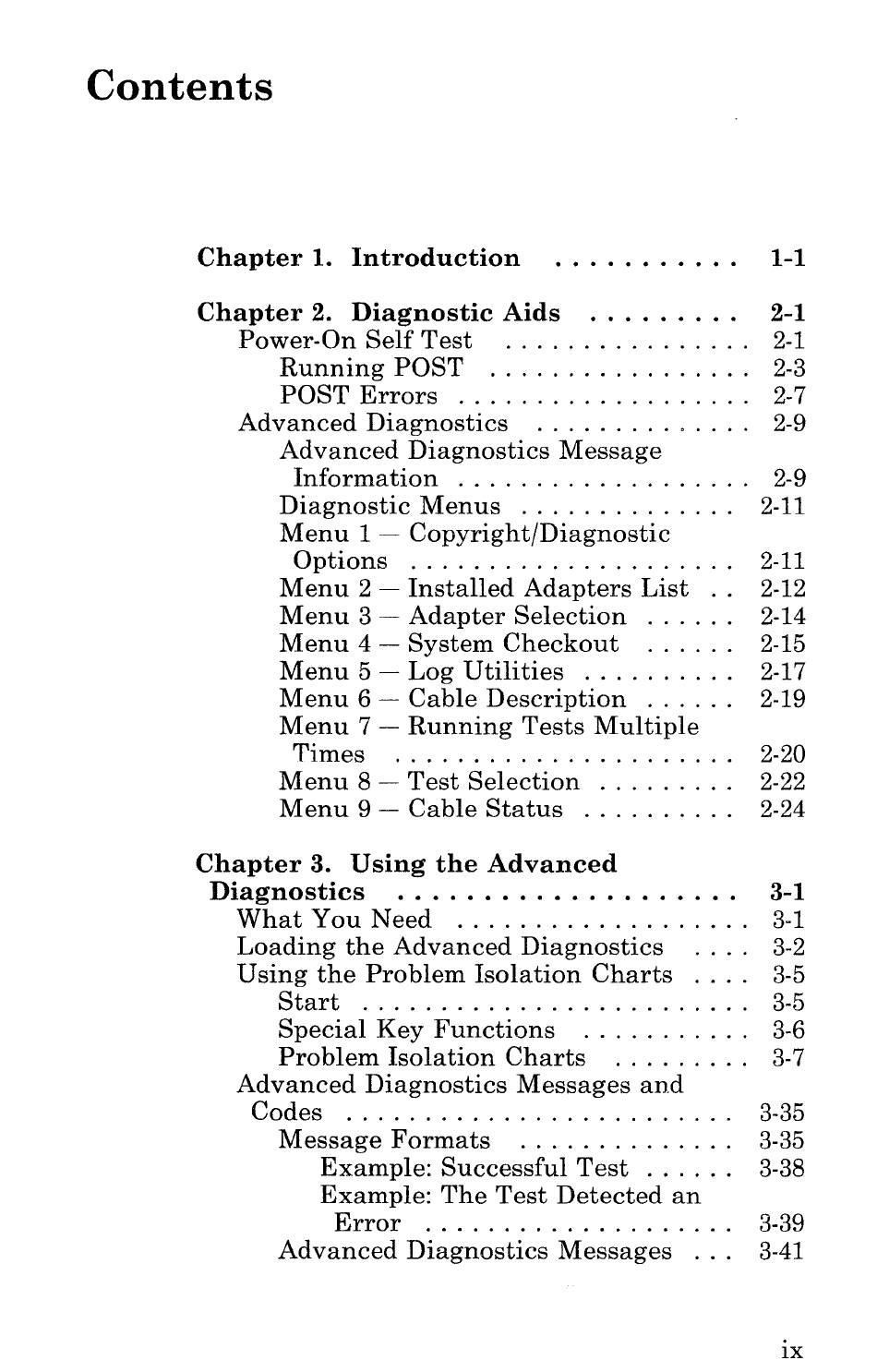

Contents
Chapter
1.
Introduction 1-1
Chapter 2. Diagnostic Aids . . . . . . . . . 2-1
Power-On Self Test ................ 2-1
Running POST ................. 2-3
POST Errors . . . . . . . . . . . . . . . . . . . 2-7
Advanced Diagnostics .............. 2-9
Advanced Diagnostics Message
Information . . . . . . . . . . . . . . . . . . . 2-9
Diagnostic Menus .............. 2-11
Menu 1 - Copyright/Diagnostic
Options . . . . . . . . . . . . . . . . . . . . . 2-11
Menu 2 - Installed Adapters List .. 2-12
Menu 3 - Adapter Selection ...... 2-14
Menu 4 - System Checkout ...... 2-15
Menu 5 - Log Utilities .......... 2-17
Menu 6 - Cable Description ...... 2-19
Menu 7 - Running Tests Multiple
Times . . . . . . . . . . . . . . . . . . . . . . 2-20
Menu 8 - Test Selection ......... 2-22
Menu 9 - Cable Status .......... 2-24
Chapter 3. Using the Advanced
Diagnostics . . . . . . . . . . . . . . . . . . . . 3-1
What You Need . . . . . . . . . . . . . . . . . . . 3-1
Loading the Advanced Diagnostics 3-2
Using the Problem Isolation Charts .... 3-5
Start . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Special Key Functions ........... 3-6
Problem Isolation Charts ......... 3-7
Advanced Diagnostics Messages and
Codes . . . . . . . . . . . . . . . . . . . . . . . . . 3-35
Message Formats .............. 3-35
Example: Successful Test ...... 3-38
Example: The Test Detected an
Error . . . . . . . . . . . . . . . . . . . . 3-39
Advanced Diagnostics Messages ... 3-41
IX
