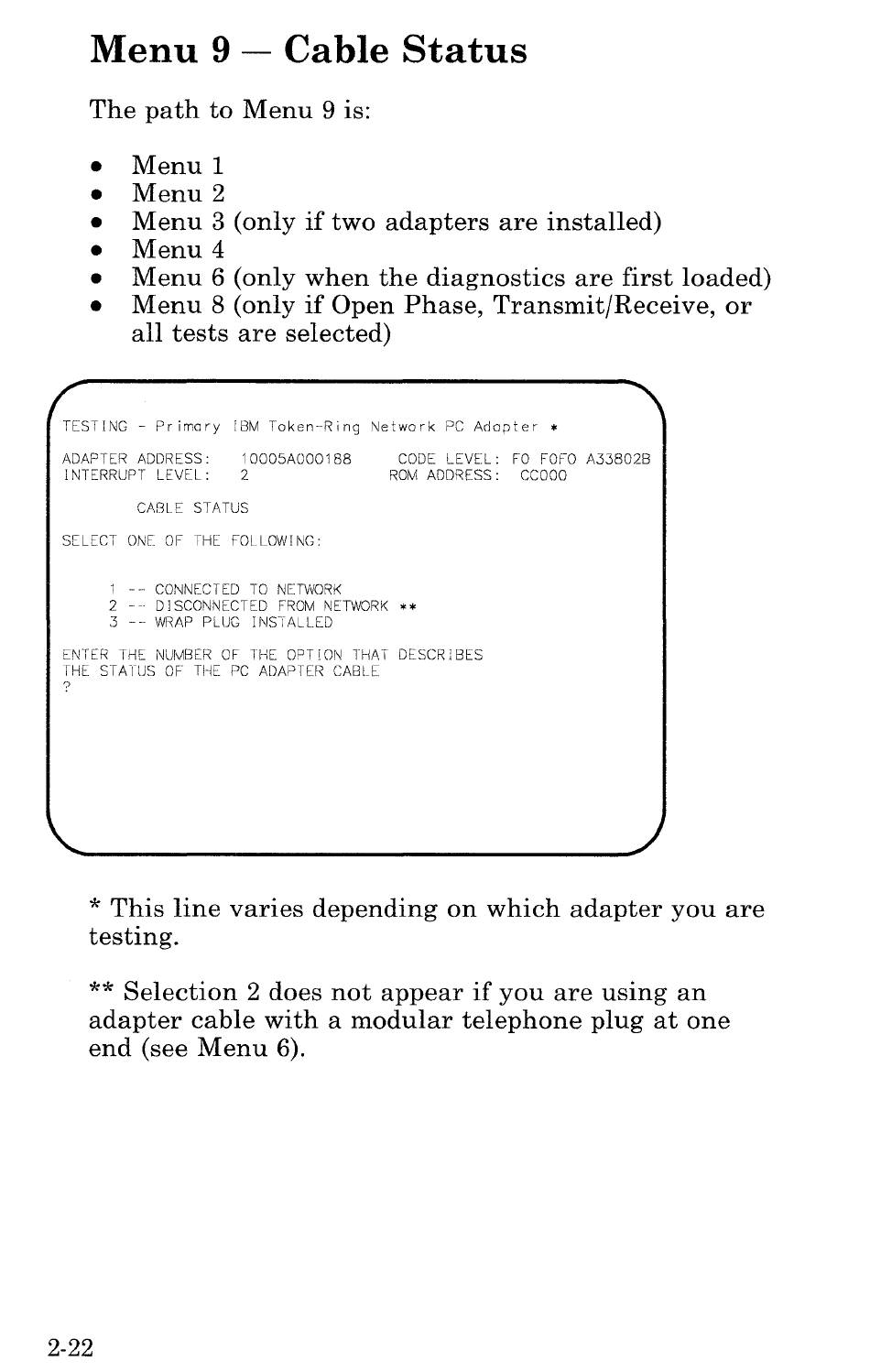

Menu 9 - Cable Status
The path to Menu 9 is:
• Menu 1
• Menu 2
• Menu 3 (only if two adapters are installed)
• Menu 4
• Menu 6 (only when the diagnostics are first loaded)
• Menu 8 (only if Open Phase, Transmit/Receive, or
all tests are selected)
TESTING - Primary IBM Token-Ring Network PC Adapter
*
ADAPTER ADDRESS: 10005A000188 CODE LEVEL: FO FOFO A33802B
ROM ADDRESS: CCOOO
INTERRUPT LEVEL: 2
CA.8lE STATUS
SELECT ONE OF THE FOLI_OW! NG:
I --- CONNECTED TO NETltVORK
2 --
DISCm~NECTED
FROM NETWORK
**
3 -- WRAP PLUG INSTALLED
ENTER THE NUMBER OF THE OPTION THAT DESCRIBES
fHE STATUS OF THE PC ADAPTER CABLE
?
*
This line varies depending on which adapter you are
testing.
**
Selection 2 does not appear if you are using an
adapter cable with a modular telephone plug at one
end (see Menu 6).
2-22
