IBM Token-Ring Network PC Adapter Hardware Maintenance And Service page 83

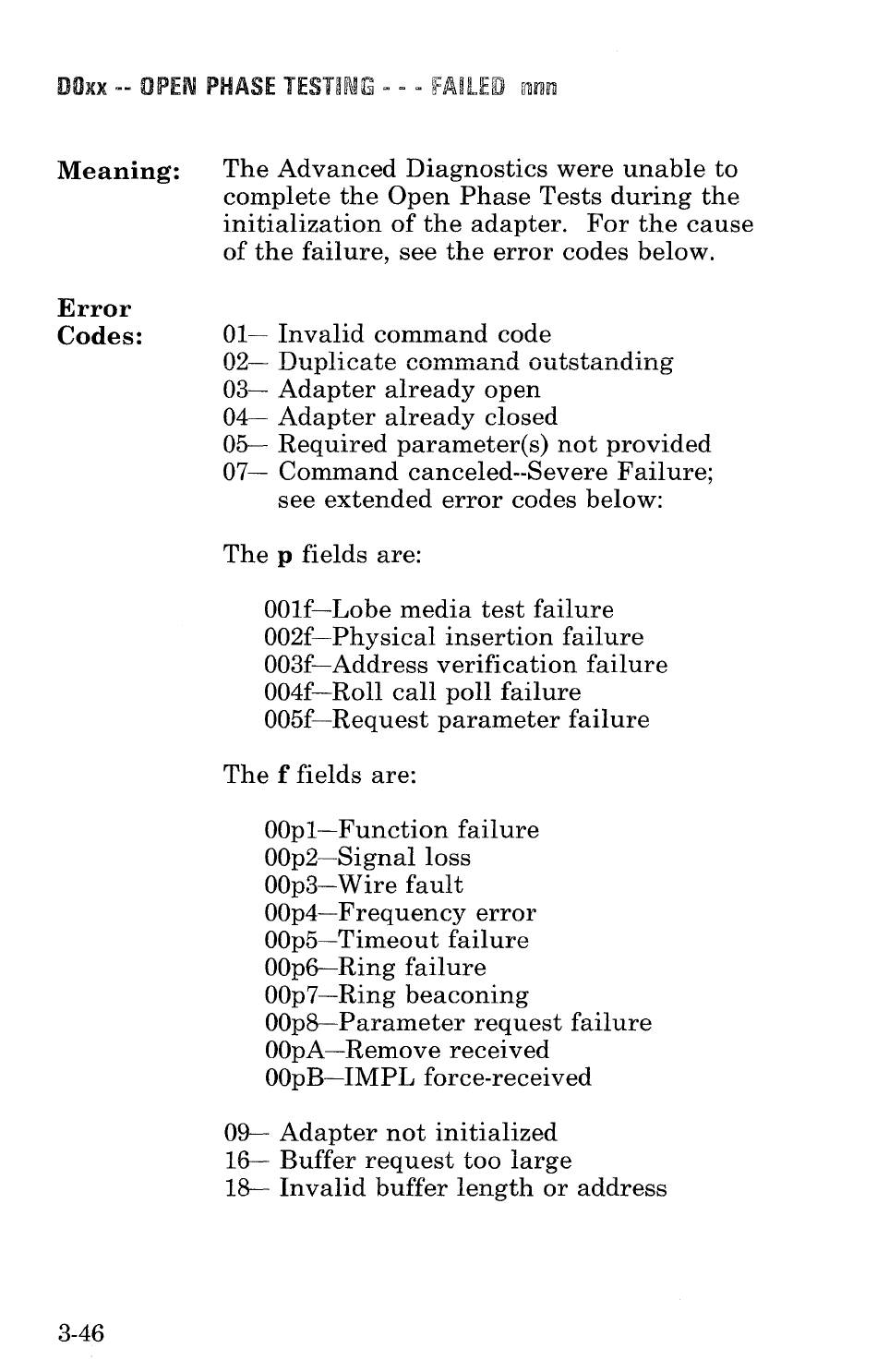

DOxx -- OPEN PHASE
TEST~NG
- - -
Meaning:
Error
Codes:
3-46
The Advanced Diagnostics were unable to
complete the Open Phase Tests during the
initialization of the adapter. For the cause
of the failure, see the error codes below.
01- Invalid command code
02- Duplicate command outstanding
03- Adapter already open
04- Adapter already closed
05- Required parameter(s) not provided
07- Command canceled--Severe Failure;
see extended error codes below:
The
p
fields are:
001f-Lobe media test failure
002f-Physical insertion failure
003f-Address verification failure
004f-Roll call poll failure
005f-Request parameter failure
The f fields are:
00p1-Function failure
OOp2-Signal loss
OOp3-Wire fault
OOp4-Frequencyerror
OOp5-Timeou t failure
OOp6-Ring failure
OOp7-Ring beaconing
OOpS-Parameter request failure
OOpA-Remove received
OOpB-IMPL force-received
09- Adapter not initialized
16- Buffer request too large
IS- Invalid buffer length or address
