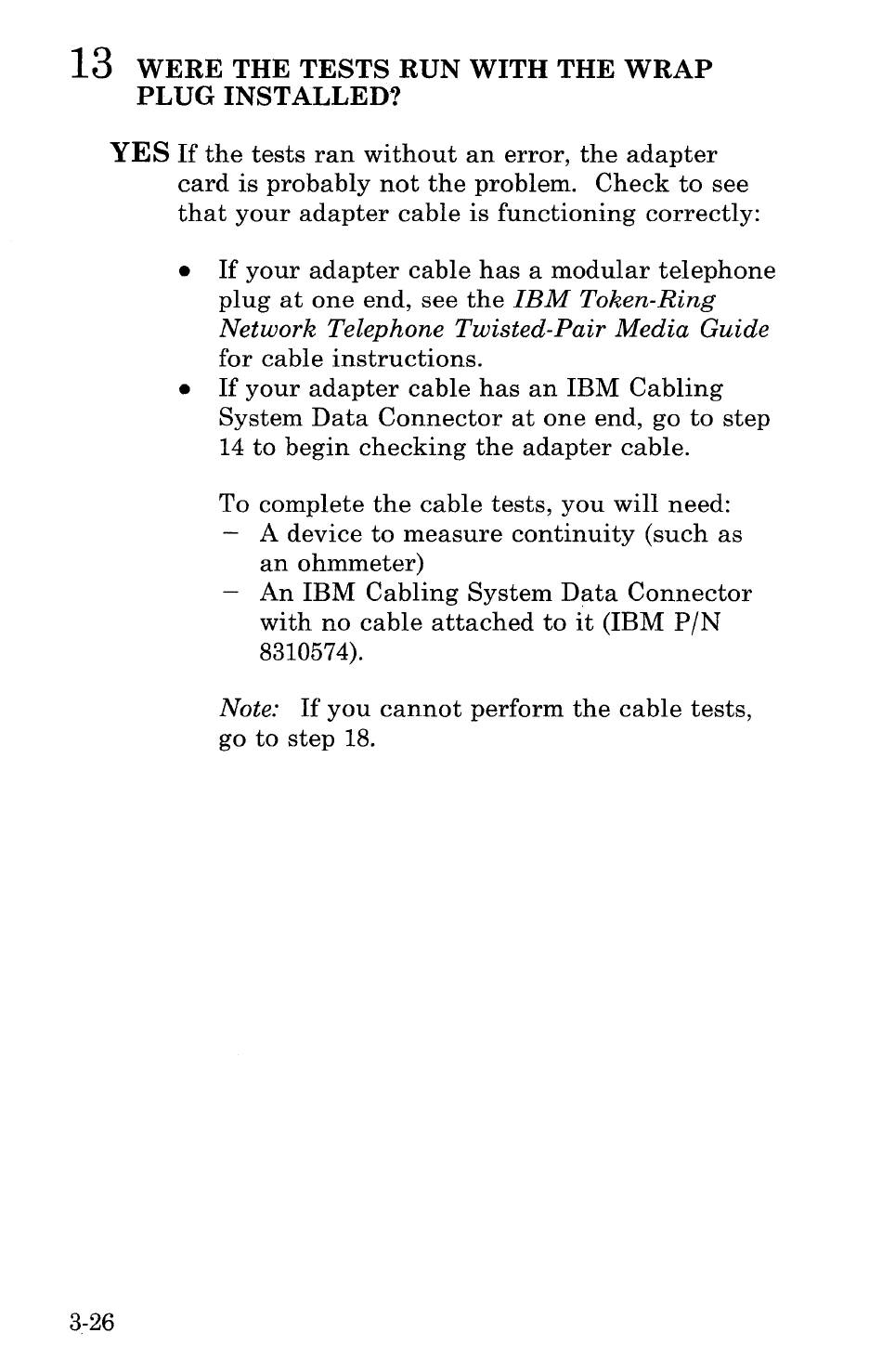

13
WERE THE TESTS RUN WITH THE WRAP
PLUG INSTALLED?
YES
If the tests ran without an error, the adapter
card is probably not the problem. Check to see
that your adapter cable is functioning correctly:
3-26
• If your adapter cable has a modular telephone
plug at one end, see the IBM Token-Ring
Network Telephone Twisted-Pair Media Guide
for cable instructions.
• If your adapter cable has an IBM Cabling
System Data Connector at one end, go to step
14 to begin checking the adapter cable.
To complete the cable tests, you will need:
A device to measure continuity (such as
an ohmmeter)
An IBM Cabling System Data Connector
with no cable attached to it (IBM PIN
8310574).
Note: If you cannot perform the cable tests,
go to step 18.
