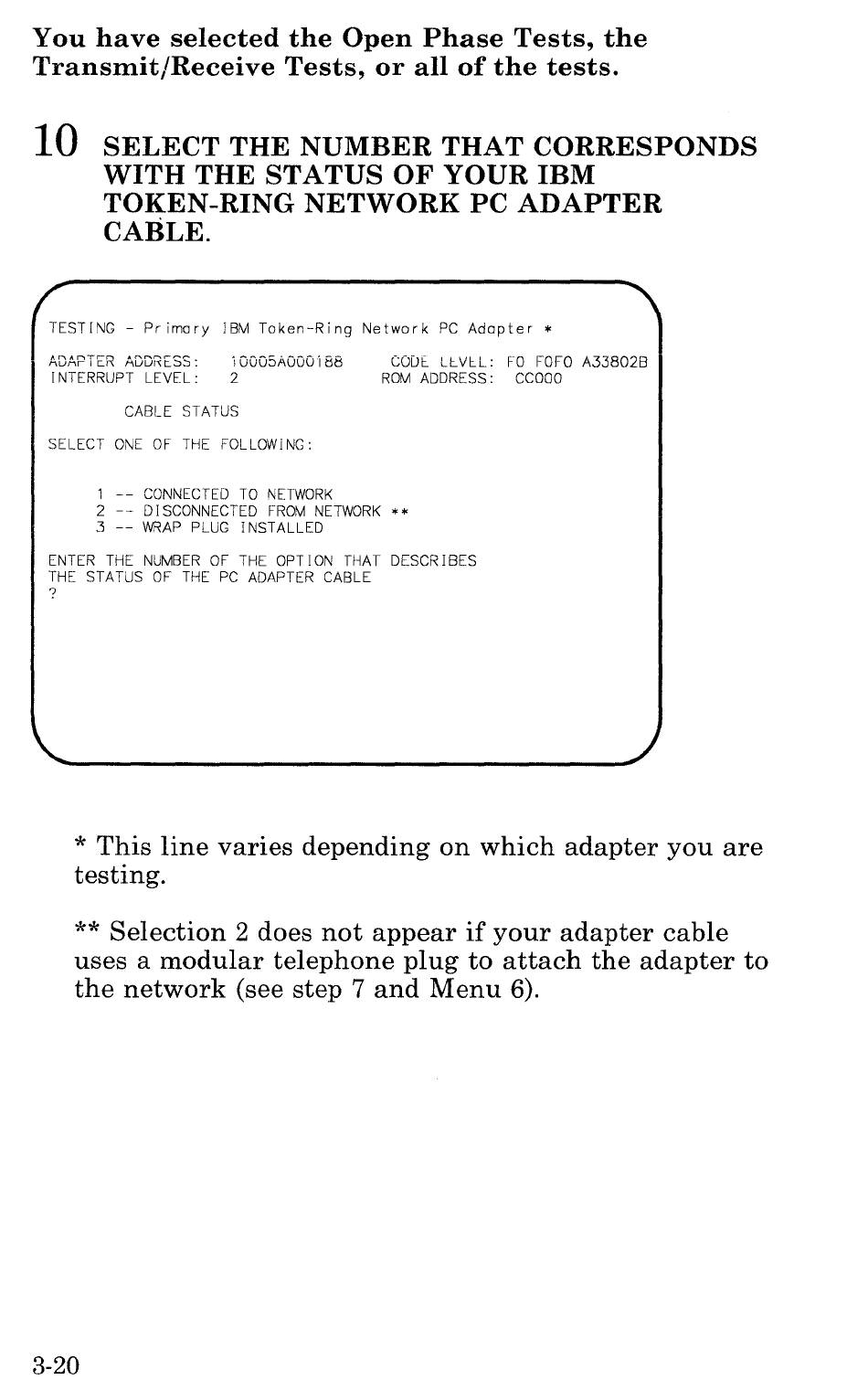

You have selected the Open Phase Tests, the
Transmit/Receive Tests, or all of the tests.
10
SELECT THE NUMBER THAT CORRESPONDS
WITH THE STATUS OF YOUR IBM
TOKEN-RING NETWORK PC ADAPTER
CABLE.
TESTING - Primary IBM Token-Ring Network PC Adapter
*
ADAPTER ADDRESS:
10005A000188
COD~
LlVlL: FO FOFO A33802B
ROM ADDRESS:
CCOOO
INTERRUPT LEVEL:
2
CABLE STATUS
SELECT ONE OF THE FOLLOWING:
1 -- CONNECTED TO NETWORK
2 -- DISCONNECTED FROM NETWORK
**
3 -- WRAP PLUG INSTALLED
ENTER THE NUMBER OF THE OPTION THAT DESCRIBES
THE STATUS OF THE PC ADAPTER CABLE
?
*
This line varies depending on which adapter you are
testing.
**
Selection 2 does not appear if your adapter cable
uses a modular telephone plug to attach the adapter to
the network (see step 7 and Menu 6).
3-20
