Cleaning the guns
MagicCompact BA04
V 06/13
MagicCompact BA04 - cleaning the guns
The automatic guns are cleaned very simply and quickly. The cleaning of
the automatic guns takes place by the gun blow off equipment on the
BA04 MagicCompact coating booth.

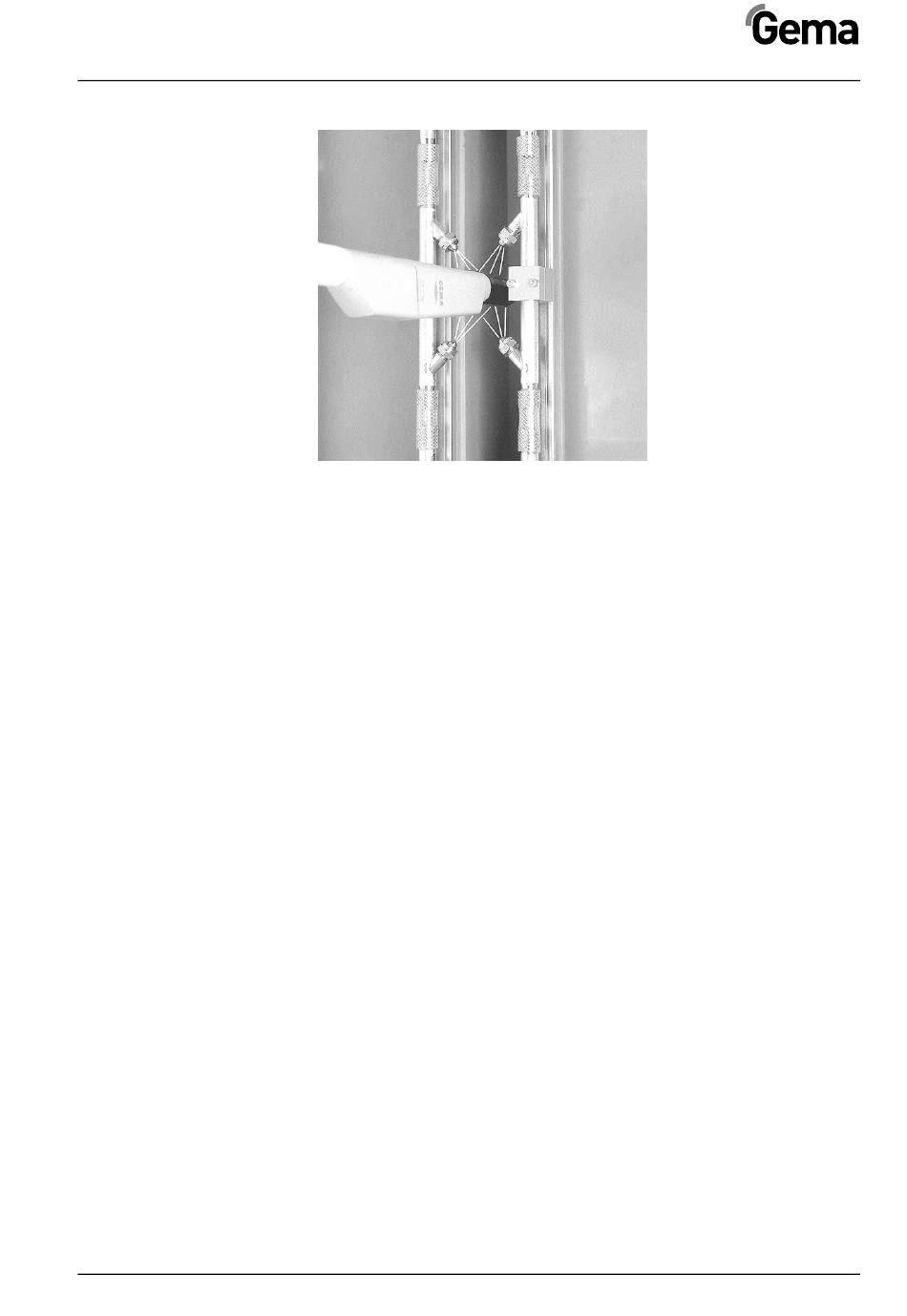

By activating the cleaning function on the control unit, the reciprocators
and the guns move out of the booth. At the same time, each gun is blown
off cleanly from the outside, by four flat jet blow-off nozzles.
These flat jet blow-off nozzles are found on the gun slots, on the outside
of the booth. If necessary, this cleaning sequence can be repeated.
