Floor blow-off system

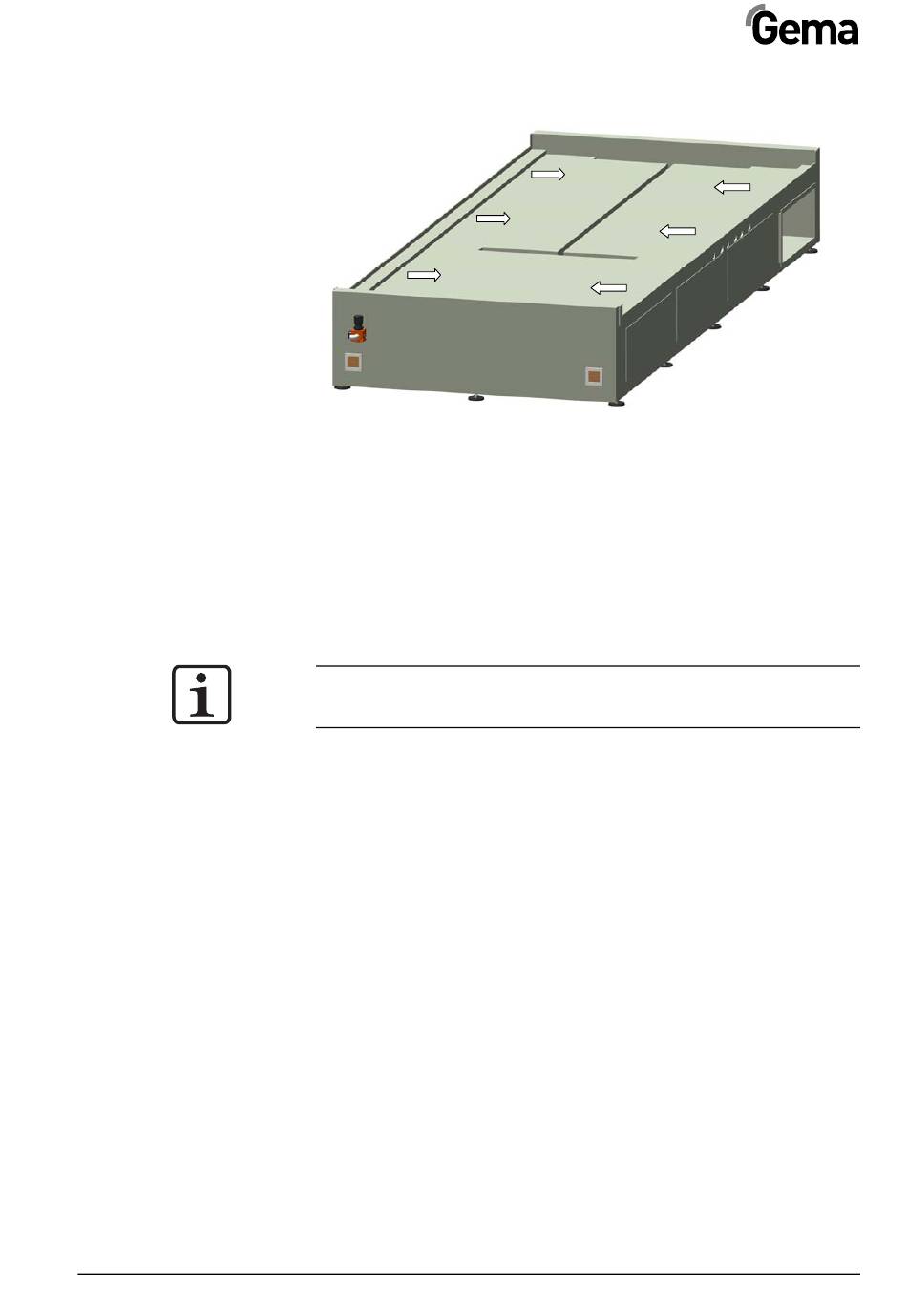

MagicCompact BA04 - floor blow-off system (arrows = blow-off direction)
A blow-off rail with blow nozzles is integrated lengthwise into the
MagicCompact BA04 booth floor. The blow-off rail consists of various
segments, which can be pneumatically controlled one by one.
The required blow-off pressure depends on the booth size and the
powder type. In preset intervals, the nozzles blow the powder, located on
the floor, in the direction of the suction slots. The powder is aspirated via
the slots, cleaning the booth floor in this way.
The valves for the control of the floor blow-off segments are located in
the booth basement.
Note:
The compressed air input pressure for the floor blow-off system
must be set at 5.0 bar!
