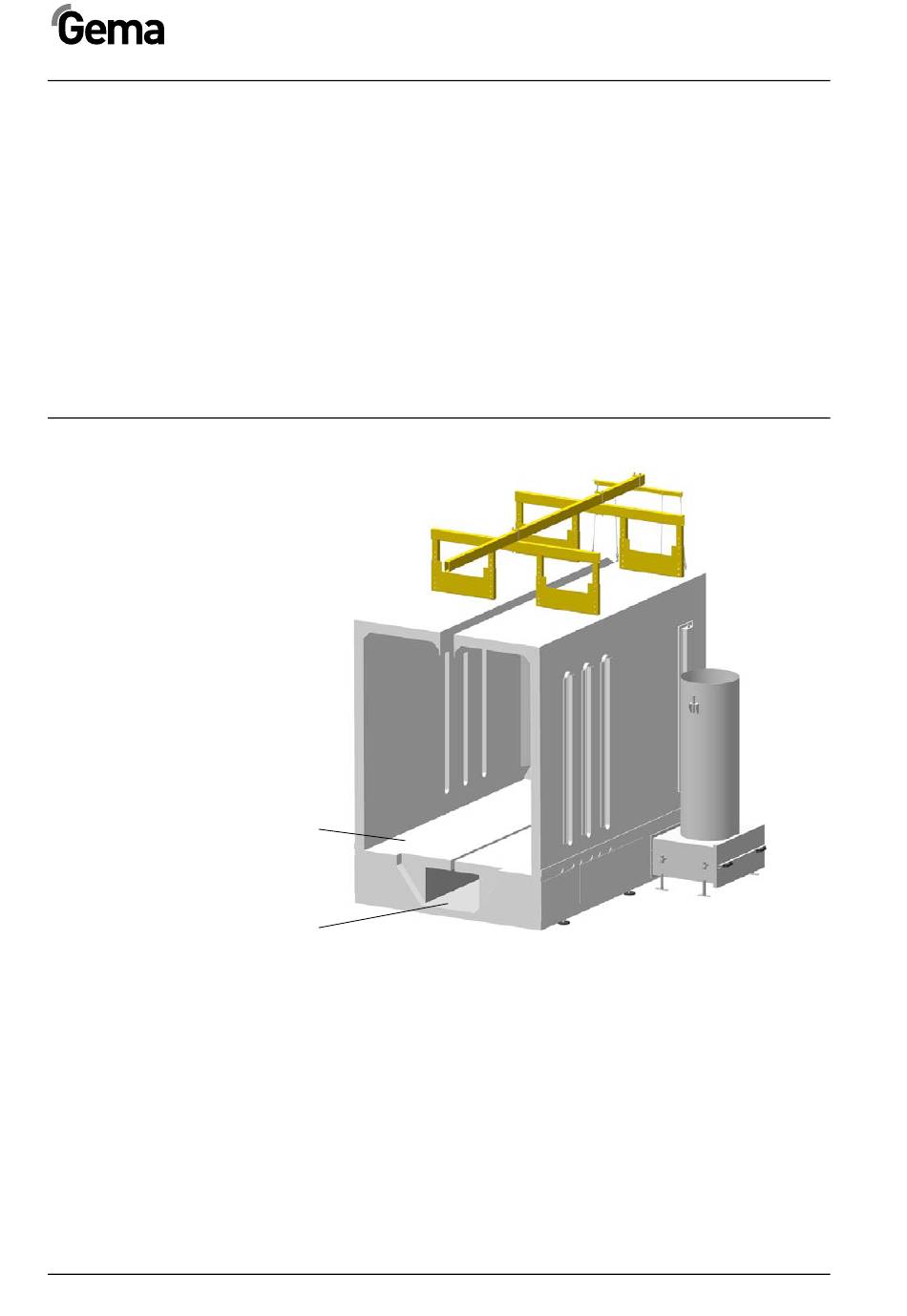

Booth - superstructure
Booth - basement
Floor blow-off
Suction duct
18 • Design and function
V 06/13
The MagicCompact BA04 booth superstructure is a double walled plastic
panel construction, ensuring an optimum powder repelling effect.
All grounded parts, including the booth superstructure supports, are
positioned at the necessary required distance outside of the booth. This
ensures the powder repelling effect of the booth, also for a longer coating
period.
The interior of the booth is illuminated by lightings, which are fitted into
the booth ceilings.
The basic version of the MagicCompact BA04 booth has no hand coating
openings. The booth can be equipped either on one or both sides with
manual coating equipment, as precoating or touch-up station
alternatively.
MagicCompact BA04 - basement
The booth basement consists of reinforced plastic material. The booth
basement contains the floor blow-off unit and the powder suction (suction
duct).
