Automatic guns
22 • Design and function
V 06/13
OptiGun-AX or PG 2-AX automatic powder gun types are used in the
MagicCompact BA04 powder coating booth. These guns were
particularly developed for an automatic, simple cleaning.

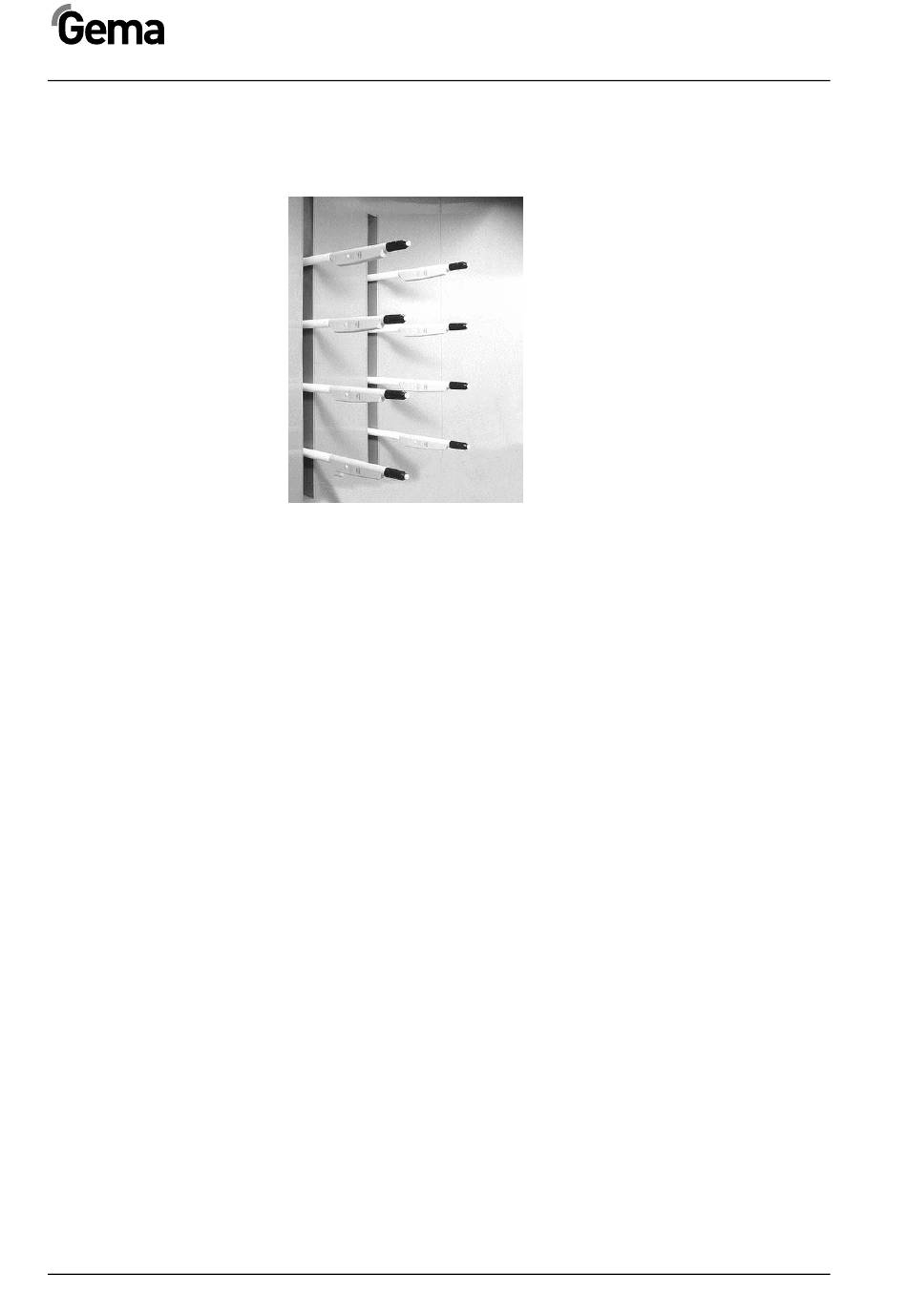

MagicCompact BA04 - automatic guns
The connections for the powder hose, the high voltage and the electrode
rinsing air are outside of the coating booth. These supply attachments
are integrated into the gun, enabling the guns to can be cleaned
automatically by blow-off nozzles.
The powder hose connection makes possible a perfect fixing of the
powder hose by the clamping device. This is a prerequisite for the
automatic rinsing of the powder transport equipment (further information
about automatic guns, see in the corresponding user manual).
On the BA04 MagicCompact booth, a distinction between light and dark
colors is principally made.
MagicCompact BA04
